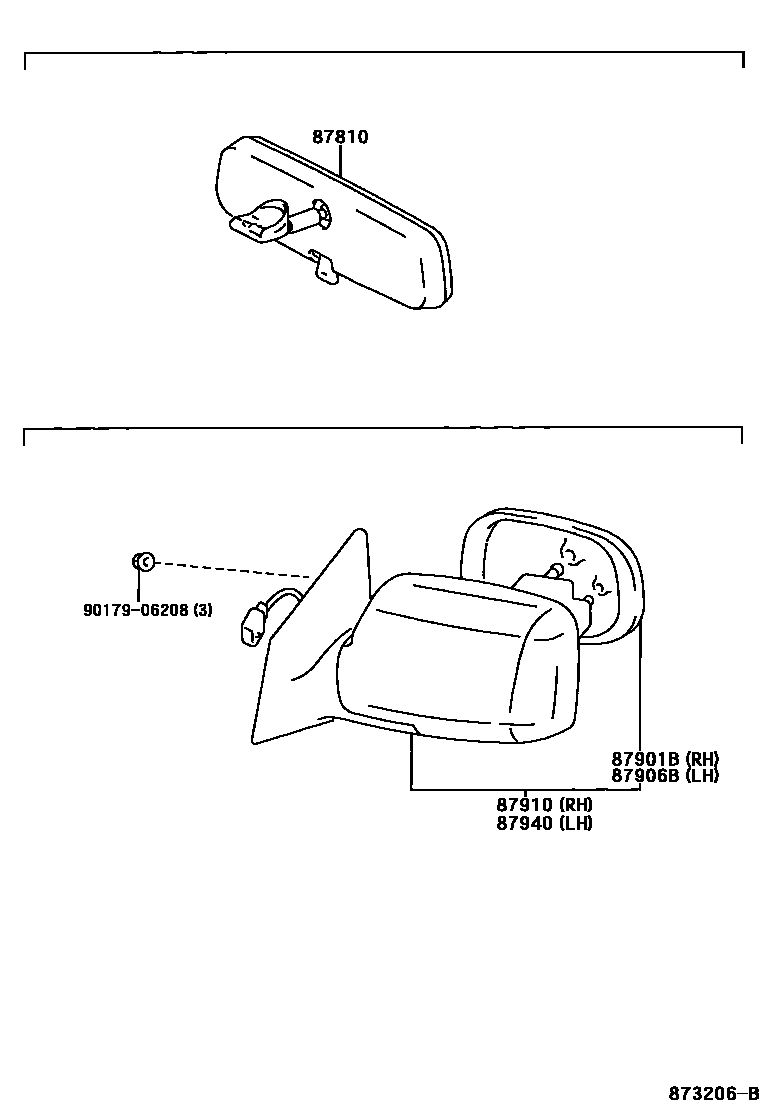

Toyota YARIS/ECHO (3D,5D) — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i199903-200208

main87810-52040i200208-200212

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A820i200212

main87931-1E800i200212

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E820i199903-200212

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52030i199908-200001

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-52031i200001-200212

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-52040i199908-200001

main87910-52041i200001-200212

main87910-52060i199908-200001

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-52061i200212-200508

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-52070i199903-200004

main87910-52071i200212-200308

main87910-52081i200212-200508

W(MANUAL REMOTE CONTOROL MIRROR)

main87910-52130i199903-200001

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-52131i200001-200212

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-52151i200006-200212

W(MANUAL REMOTE CONTOROL MIRROR)

main87910-52580i200308-200508

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52030i199908-200001

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-52031i200212-200508

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-52050i199903-200004

main87940-52051i200212-200308

main87940-52060i199908-200001

main87940-52061i200006-200212

W(MANUAL REMOTE CONTOROL MIRROR)

main87940-52110i199903-200001

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-52111i200001-200212

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-52131i200212-200508

W(MANUAL REMOTE CONTOROL MIRROR)

main87940-52550i200308-200508

9017906208

main90179-06208

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota YARIS/ECHO (3D,5D)

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota YARIS/ECHO (3D,5D). Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
