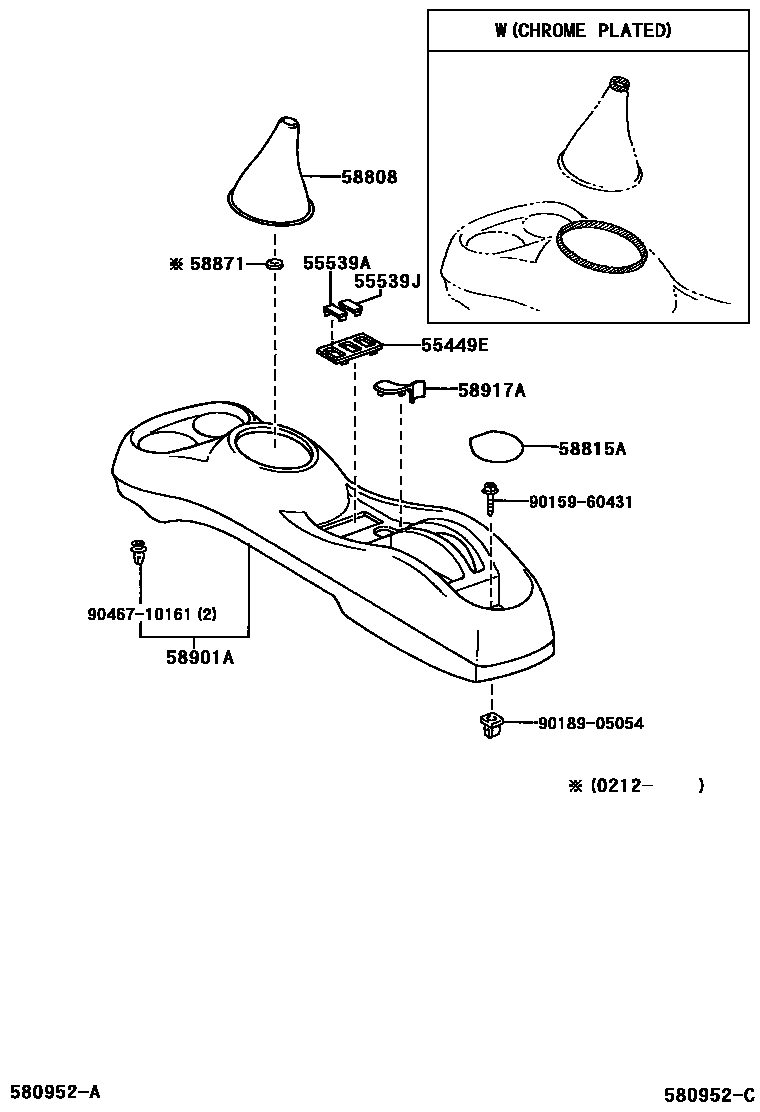

Toyota YARIS/ECHO (3D,5D) — CONSOLE BOX & BRACKET
55449EBASE, SWITCH
MD.GRAY,TRIM1#
DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
55539ACOVER, SPARE SWITCH HOLE
55539JCOVER, SPARE SWITCH HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
BLUE GRAY,TRIM1#
DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
BLACK,TRIM9#
REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM9#
58815ACARPET, CONSOLE BOX
58871CUSHION, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
MD.GRAY,TRIM1#
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM9#
58917ACOVER, CONSOLE BOX, REAR
MD.GRAY,TRIM1#
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
9015960431
main90159-60431
9018905054
main90189-05054
9046710161
main90467-10161
11 parts on this diagram · 1 diagram in section
