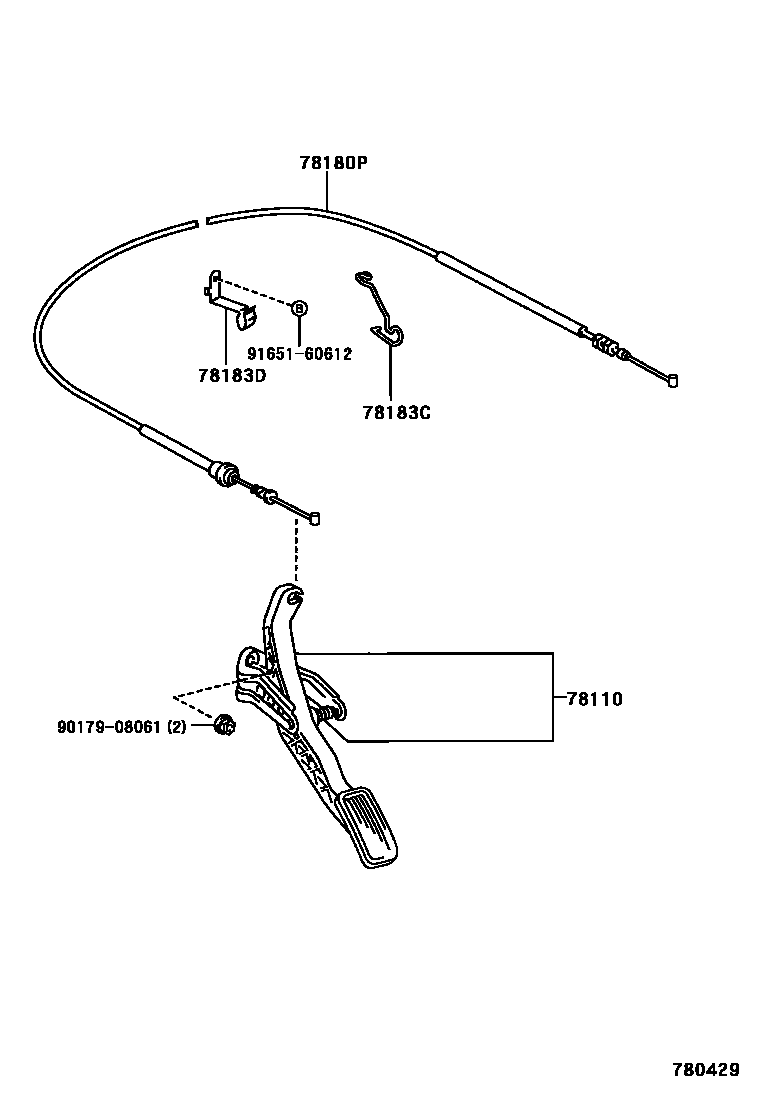

Toyota YARIS/ECHO (3D,5D) — ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iSCP10199903-200402

main78120-52060iNCP10..LHD199908-200212

main78120-52110iNCP1#,SCP10..RHD200403

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52010iNCP10..LHD199908-200212

main78180-52030iNCP1#..RHD199908-200212

main78180-52060iSCP10199903-200212

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52060iNCP10..LHD199908-200110

main78183-52070iNCP1#..RHD199908-200212

main78183-52140iNCP10..LHD200110-200212

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52030iNCP1#199908-200109

main78183-52120iNCP1#200109-200212

9017908061

main90179-08061

9165160612

main91651-60612

6 parts on this diagram · 3 diagrams in section
