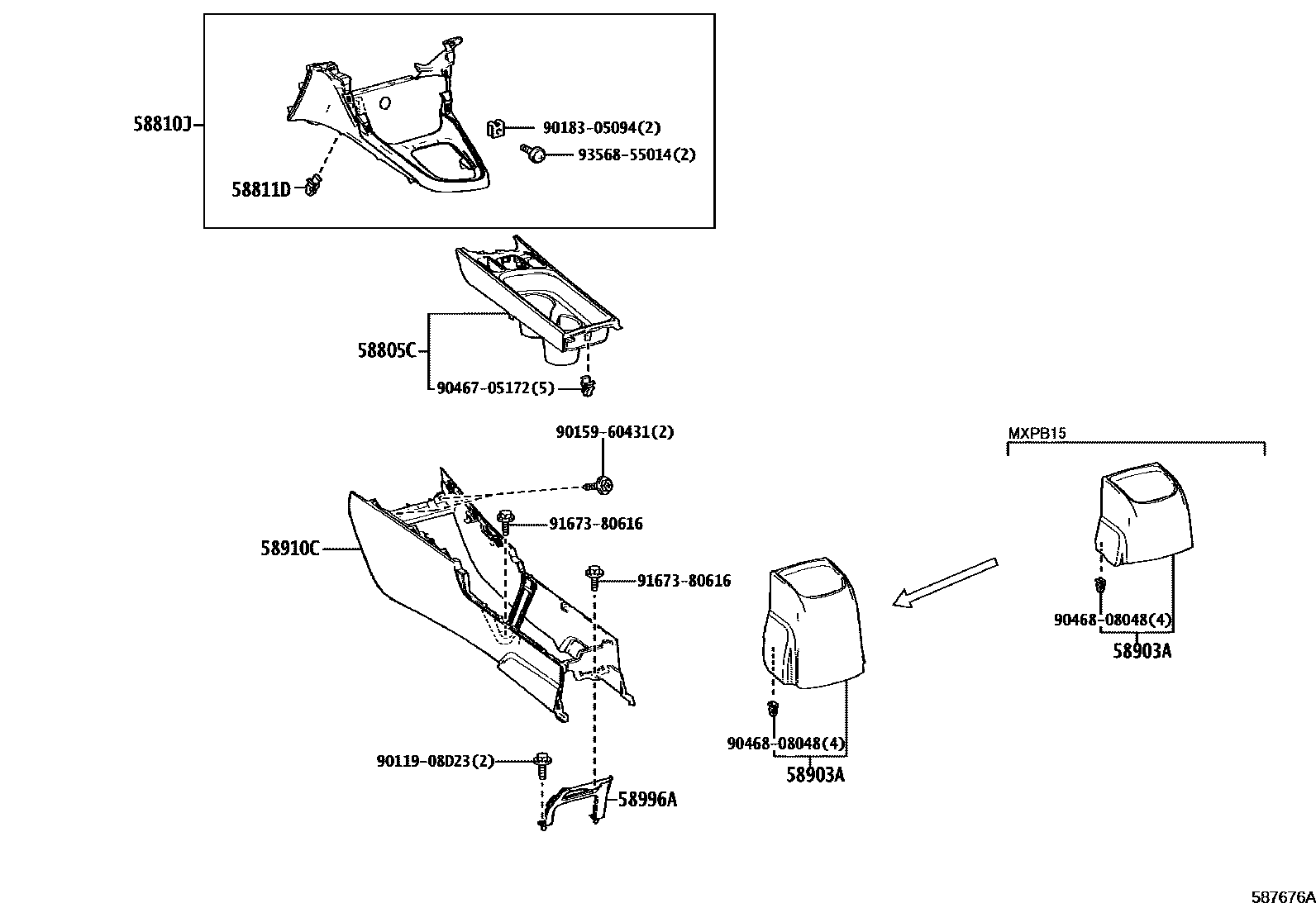

Toyota YARIS CROSS — CONSOLE BOX & BRACKET
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-52040-C0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..GRS,HBDX,X; MXPB10,MXPJ10..HBDZ,Z202008-202401
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#
58810JBOX ASSY, CONSOLE
BLACK/SILVER,TRIM2#,40
BLACK,TRIM4#; BLACK,TRIM41
BLACK,TRIM2#
SMOKE SILVER METALLIC,TRIM2#; SMOKE SILVER METALLIC,TRIM2#,4#
58811DCLIP(FOR CONSOLE BOX)
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-K0010-C0iMXPB10,MXPJ1#..G,HBDG; MXPB10,MXPJ1#..GRS,HBDX,X; MXPB10,MXPJ1#..HBDZ,Z202008-202401
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#; BLACK,TRIM2#,4#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9011908D23
main90119-08D23
9015960431
main90159-60431
9018305094
main90183-05094
9046705172
main90467-05172
9046808048
main90468-08048
9167380616
main91673-80616
9356855014
main93568-55014
13 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota YARIS CROSS
This section contains 27 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS CROSS. Key components include: PANEL SUB-ASSY, CONSOLE, UPPER REAR, BOX ASSY, CONSOLE, CLIP(FOR CONSOLE BOX), COVER, CONSOLE BOX, FR, BRACKET, CONSOLE SUPPORT, UPPER NO.1.
