Toyota YARIS CROSS — LANE-KEEPING ASSIST

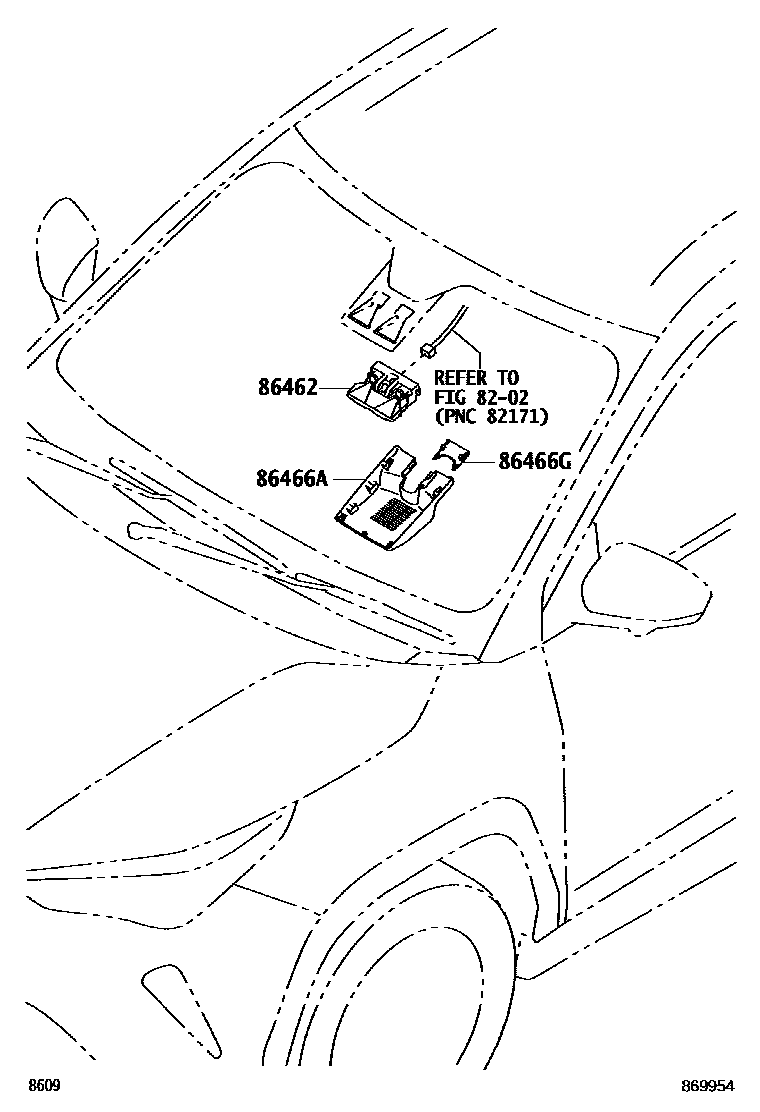

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

86462CAMERA, OBJECT RECOGNITION

main8646C-B1260i202306

BRUNEI

main8646C-B1270i202306

BHUTAN&ACTIVE SAFETY PACKAGE-W/O; NEPAL&ACTIVE SAFETY PACKAGE-W/O

main8646C-B1280i202306

main8646C-B1290i202406

main8646C-B1300i202310

main8646C-B1310i202306

main8646C-B1320i202401

main8646C-B1430i202306

main8646C-B1440i202306

main8646C-B1760i202406

86466ACOVER, LANE RECOGNITION, NO.1

main86466-BZ080-C0i202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

86466GCOVER, FORWARD RECOGNITION, NO.1

main86466-BZ090-C0i202306

BHUTAN,BLACK,TRIM2#; BLACK,TRIM2#; NEPAL,BLACK,TRIM2#

4 parts on this diagram · 1 diagram in section

LANE-KEEPING ASSIST for Toyota YARIS CROSS

This section contains 4 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota YARIS CROSS. Key components include: WIRING & CLAMP, CAMERA, OBJECT RECOGNITION, COVER, LANE RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.1.
