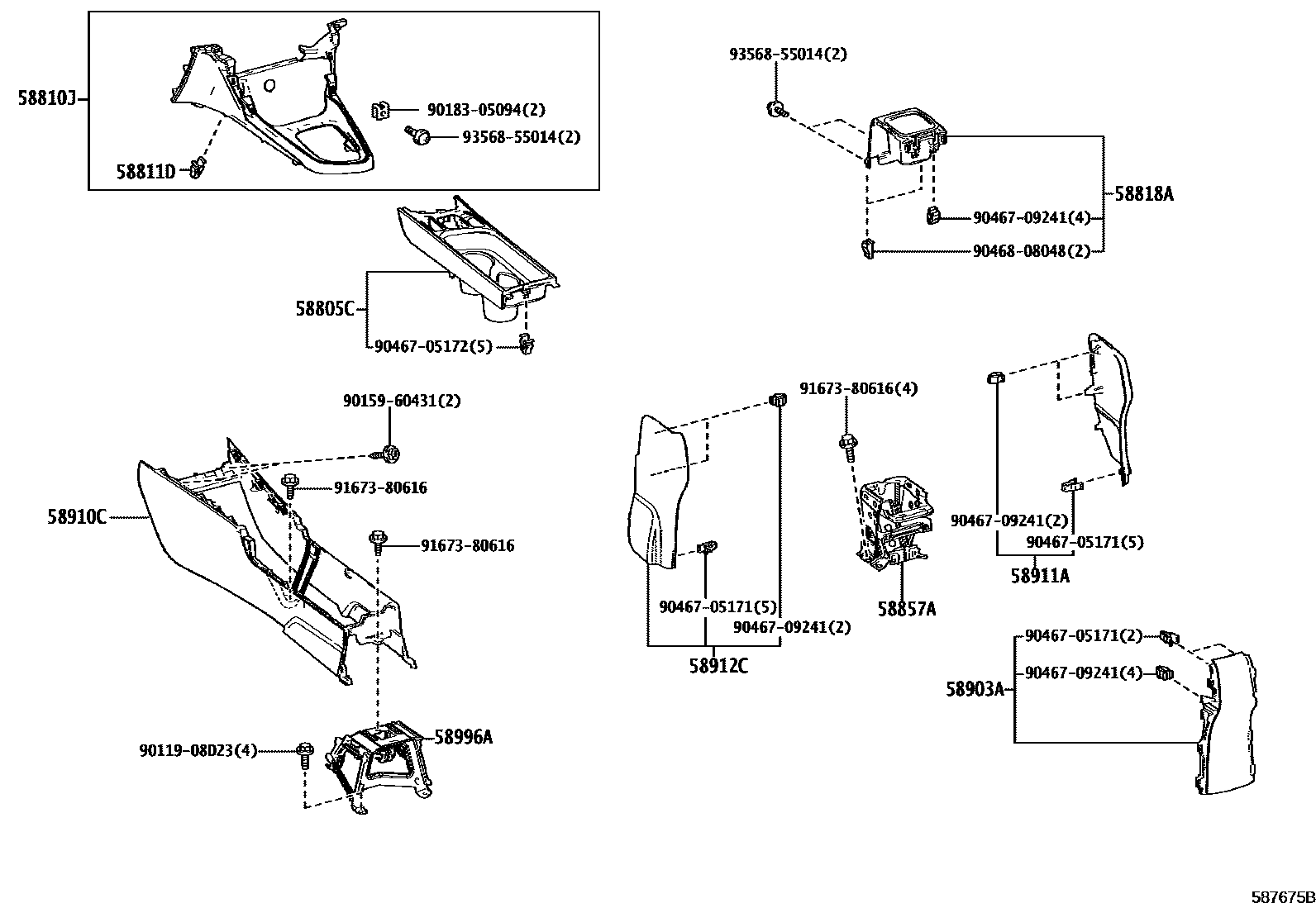

Toyota YARIS CROSS — CONSOLE BOX & BRACKET

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-52040-C0i202008-202401

BLACK,TRIM2#,4#,6#

main58805-52050-C0i202008-202401

BLACK,TRIM2#,4#,6#

58810JBOX ASSY, CONSOLE

main58810-52020-B0i202008-202205

BLACK/SILVER,TRIM2#,4#,6#

main58810-52020-C0i202205-202401

BLACK,TRIM41

main58810-52150-B0i202210-202401

SMOKE SILVER METALLIC,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-05172×11i202008-202401

58818ACOVER, CONSOLE BOX, FR

main58818-52080i202401

main58818-K0030-C0i202008-202401

BLACK,TRIM2#,4#,6#

58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1

main58857-52020i202401

main58857-K0010i202008-202401

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-52130i202401

main58903-K0100-C0i202008-202401

BLACK,TRIM2#,4#,6#

58910CBOX ASSY, CONSOLE, REAR

main58910-K0010-C0i202401

BLACK,TRIM2#; BLACK,TRIM2#,4#

58911APANEL, BOX SIDE, NO.1

main58911-52320i202401

main58911-K0030-C0i202008-202401

BLACK,TRIM2#,4#,6#

58912CPANEL, BOX SIDE, NO.2

main58912-52100i202401

main58912-K0030-C0i202008-202401

BLACK,TRIM2#,4#,6#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-K0110i202008-202401

9011908D23

main90119-08D23

9015960431

main90159-60431

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9046709241

main90467-09241

9046808048

main90468-08048

9167380616

main91673-80616

9356855014

main93568-55014

19 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota YARIS CROSS

This section contains 27 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS CROSS. Key components include: PANEL SUB-ASSY, CONSOLE, UPPER REAR, BOX ASSY, CONSOLE, CLIP(FOR CONSOLE BOX), COVER, CONSOLE BOX, FR, BRACKET, CONSOLE SUPPORT, UPPER NO.1.
