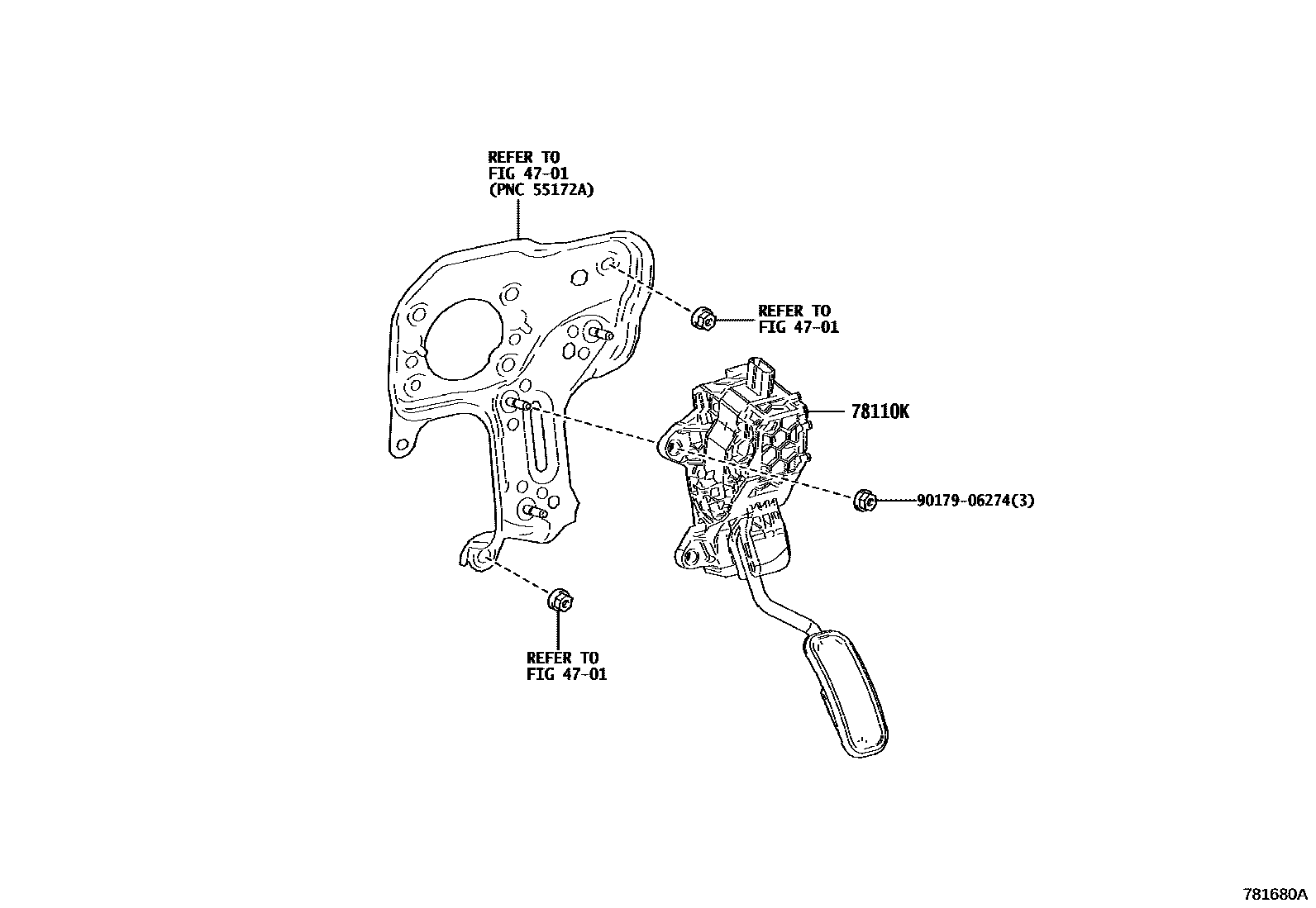

Toyota YARIS CROSS — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52161i202012-202103

main78110-52162i202104-202401

main78110-52350i202401

main78110-K0010i202008-202009

main78110-K0011i202010-202012

9017906274

main90179-06274

3 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota YARIS CROSS

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota YARIS CROSS. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
