Toyota YARIS (CHINA) — PARTIAL ENGINE ASSEMBLY

Parts diagram

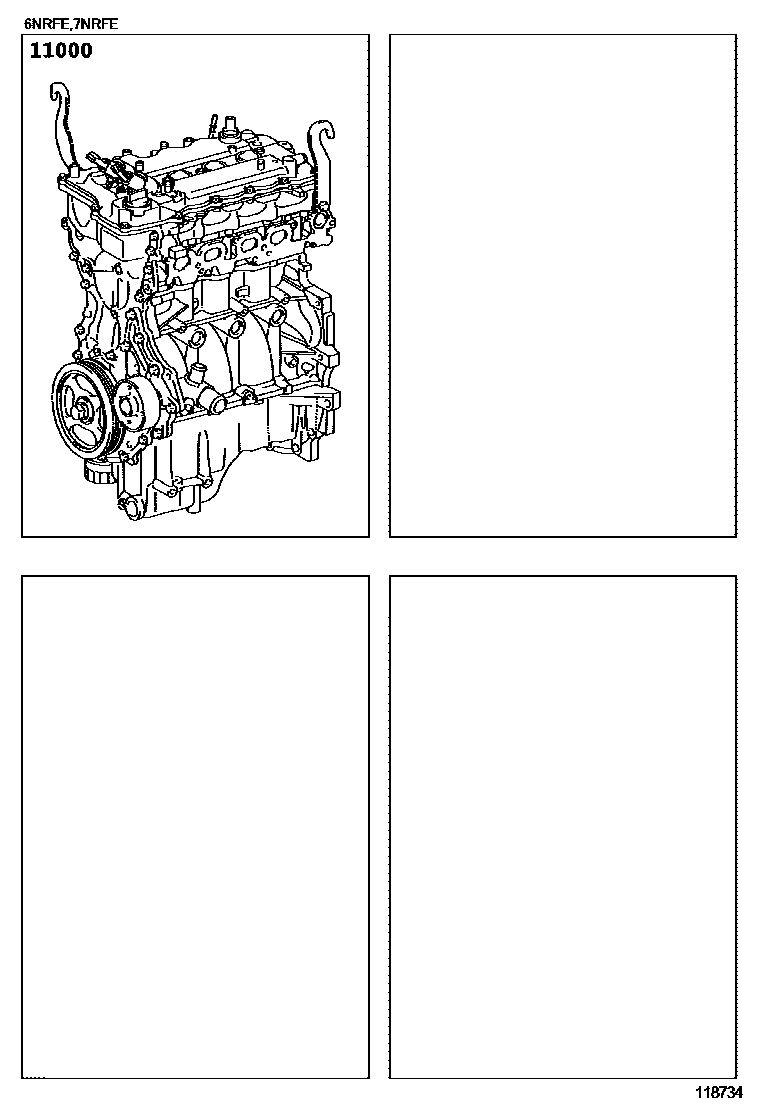

11000ENGINE ASSY, PARTIAL

main19000-0Y080i201312-201503

main19000-0Y081i201503-201505

main19000-0Y082i201505-201608

main19000-0Y090i201312-201503

main19000-0Y091i201503-201505

main19000-0Y092i201505-201608

main19000-0Y240i201608-201812

main19000-0Y310i201812-202111

1 parts on this diagram · 1 diagram in section
