Toyota YARIS (CHINA) — METER

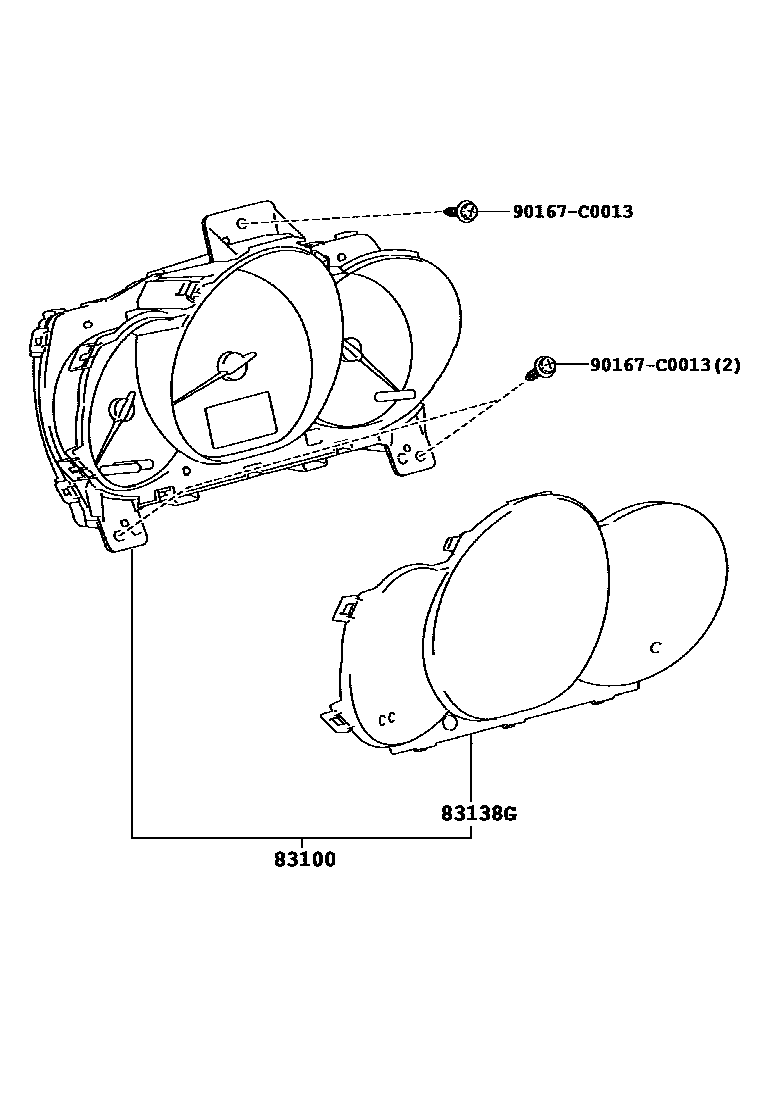

Parts diagram
83100METER ASSY, COMBINATION
main83800-0DX00i201312-201608
main83800-0DX40i201312-201608
main83800-0US80supersedes 83800-0US82i201608-201811
BASE CROSS PACKAGE; BASE CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); BASE HB, SD PACKAGE; BASE HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); BASE UP CROSS PACKAGE; BASE UP CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE UP CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT &REAR); BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); BASE UP HB, SD PACKAGE; BASE UP HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE UP HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT& REAR); BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); SD/HB SPECIAL PACKAGE
main83800-0US81i201812-201912
BASE CROSS PACKAGE; BASE CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); BASE HB, SD PACKAGE; BASE HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); BASE UP CROSS PACKAGE; BASE UP CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE UP CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT &REAR); BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); BASE UP HB, SD PACKAGE; BASE UP HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; BASE UP HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT& REAR); BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); SD/HB SPECIAL PACKAGE
main83800-0US91i201812-201912
HIGH CROSS PACKAGE; HIGH CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; HIGH CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); HIGH CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); HIGH HB, SD PACKAGE; HIGH HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; HIGH HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); HIGH HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR)
main83800-0UT00i201608-201811
MID HB, SD PACKAGE; MID HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; MID HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); MID HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR)
main83800-0UT01i201812-201912
MID HB, SD PACKAGE; MID HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; MID HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); MID HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR)
main83800-0UT02i201912-202111
DENSO
main83800-F5L00i202112
DENSO
main83800-0UF60i201410-201608
TWO TONE PACKAGE
main83800-0UF70i201410-201608
TWO TONE PACKAGE
main83800-0UF80supersedes 83800-0DX10i201410-201608
TWO TONE PACKAGE
main83800-0US82i201912-202102
DENSO,BASE CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; DENSO,BASE CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; DENSO,BASE HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE UP CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; DENSO,BASE UP CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE UP HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; DENSO,BASE UP HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); DENSO,BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR)
main83800-0US90supersedes 83800-0US92i201608-201811
HIGH CROSS PACKAGE; HIGH CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; HIGH CROSS PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); HIGH CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR); HIGH HB, SD PACKAGE; HIGH HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2; HIGH HB, SD PACKAGE&ENGINE-7NR-FKE(WITH/DSC)STEP2&SEAT BELT WARNING-WITH(FRONT & REAR); HIGH HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR)
main83800-0US92i201912-202112
DENSO; DENSO,HIGH CROSS PACKAGE
main83800-YL010supersedes 83800-0US92i201911-202112
DENSO,HIGH CROSS PACKAGE; DENSO,HIGH HB, SD PACKAGE
main83800-YL020i201910-202112
DENSO,BASE CROSS PACKAGE; DENSO,BASE UP CROSS PACKAGE; DENSO,BASE UP HB, SD PACKAGE
main83800-YL030i201910-202111
DENSO,BASE HB, SD PACKAGE
main83800-YL040i201911-202111
DENSO,MID HB, SD PACKAGE
main83800-YL050i202112
DENSO,BASE CROSS PACKAGE; DENSO,BASE UP CROSS PACKAGE; DENSO,HIGH CROSS PACKAGE
main83800-YL090supersedes 83800-0US82i202112
DENSO,BASE HB, SD PACKAGE; DENSO,SD/HB SPECIAL PACKAGE
83138GGLASS, COMBINATION METER
main83852-0DU20supersedes 83852-0UM30i201608-202112
SD/HB SPECIAL PACKAGE
main83852-0UM30i201608-202111
90167C0013
main90167-C0013

3 parts on this diagram · 1 diagram in section

METER for Toyota YARIS (CHINA)

This section contains 3 genuine Toyota parts for the METER system of the Toyota YARIS (CHINA). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
