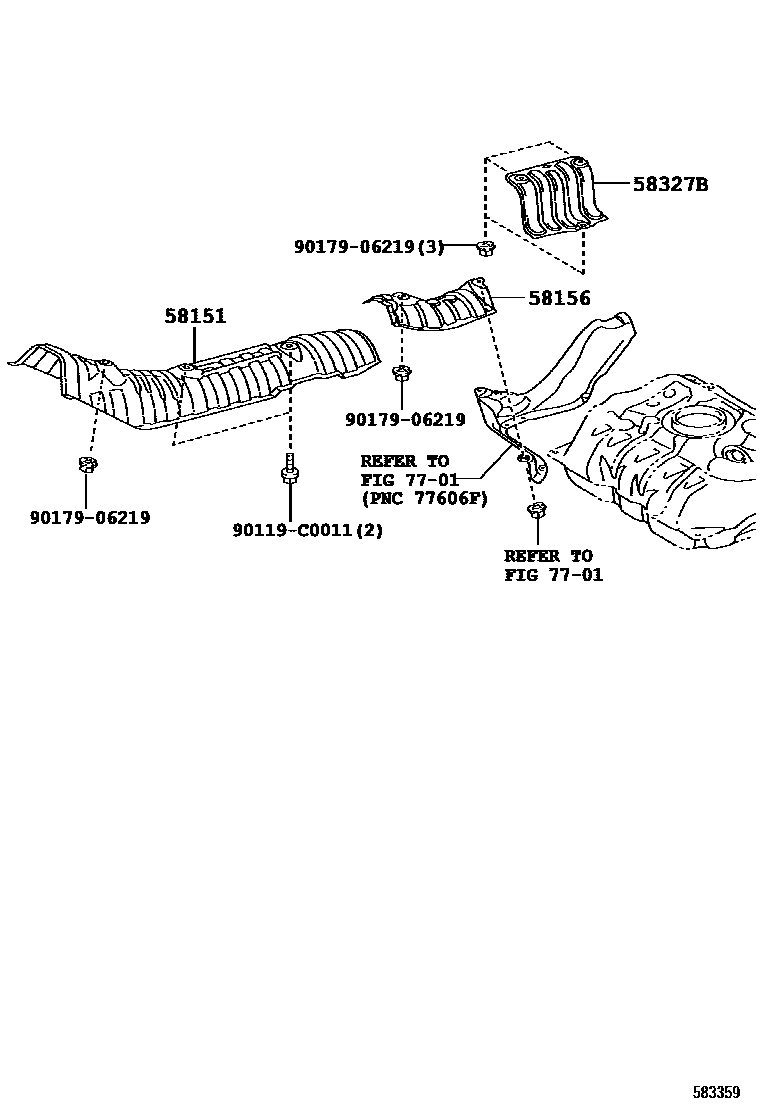

Toyota YARIS (CHINA) — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0D080i200805-201008

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0D050i200805-201008

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0D090i200805-201008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90119C0011

main90119-C0011

9017906219

main90179-06219

6 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota YARIS (CHINA)

This section contains 6 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota YARIS (CHINA). Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.4, INSULATOR, MAIN MUFFLER HEAT, FUEL TANK & TUBE.
