Toyota YARIS (ASIA) — METER

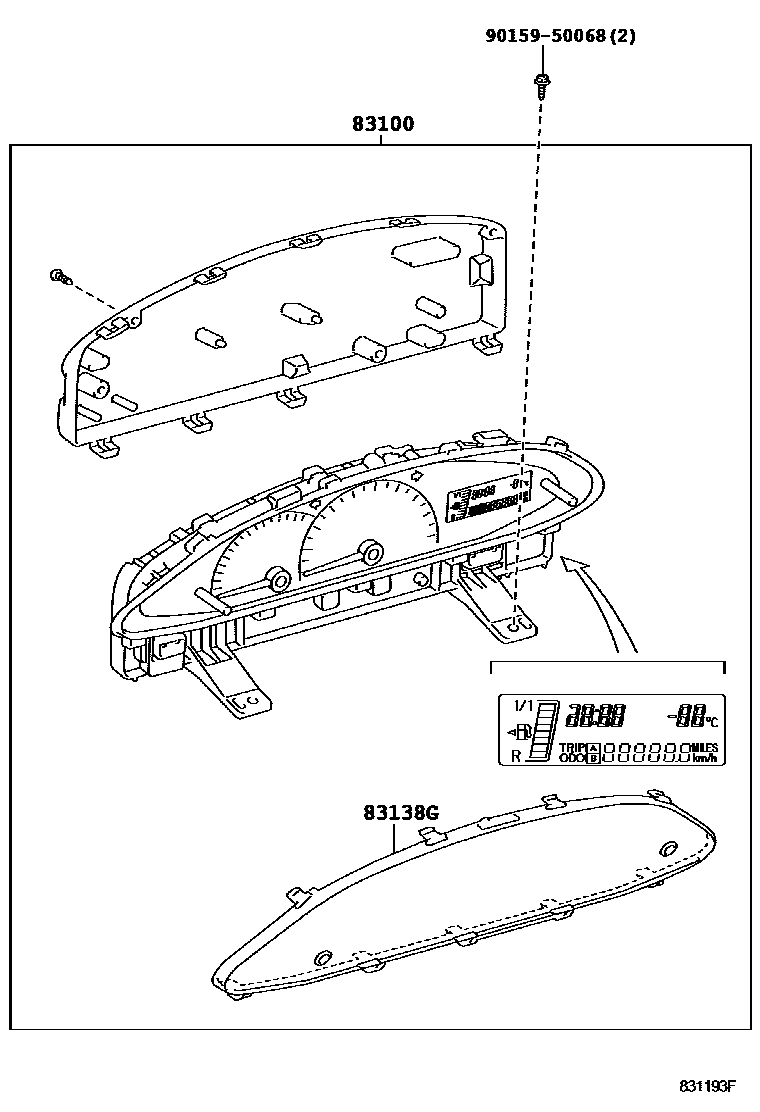

Parts diagram

83100METER ASSY, COMBINATION

main83800-0DB30i200601-200712

main83800-0DB31i200712-200903

main83800-0DB40i200601-200712

main83800-0DB50i200601-200712

main83800-0DB51i200712-200903

main83800-0DB90i200611-200902

main83800-0DB91i200903-200910

main83800-0DC02i200910

main83800-0DC50i200601-200712

main83800-0DC51i200903-200904

main83800-0DC52i200904-201307

main83800-0DC60i200601-200712

main83800-0DC70i200601-200712

main83800-0DC71i200712-200903

main83800-0DC72i200904-201307

main83800-0DC80i200611-200902

main83800-0DC81i200903-200910

main83800-0DC90i200701-200712

main83800-0DC91i200712-200903

main83800-0DC92i200904-201307

main83800-0DD00i200701-200712

main83800-0DK50i200712-200903

main83800-0DK60i200903-200904

main83800-0DK61i200904-201209

main83800-0DK62i201209-201307

main83800-0DL22i200910

main83800-0DB60supersedes 83800-0DL32i200611-200902

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main83800-0DB61supersedes 83800-0DL32i200903-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

83138GGLASS, COMBINATION METER

main83852-0DB30i200903

main83852-0DB60i200910

9015950068

main90159-50068

3 parts on this diagram · 2 diagrams in section

METER for Toyota YARIS (ASIA)

This section contains 4 genuine Toyota parts for the METER system of the Toyota YARIS (ASIA). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY.
