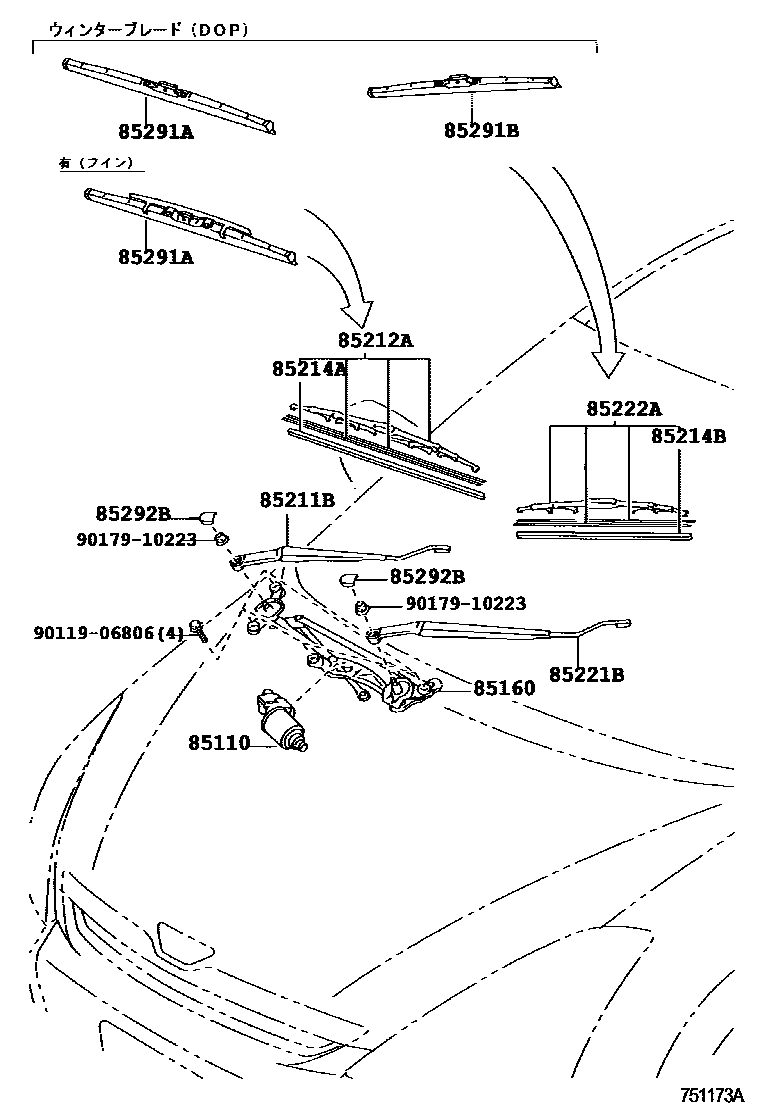

Toyota WISH — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-68020supersedes 85110-68010i200301-200508

85160LINK ASSY, WINDSHIELD WIPER

main85150-68010i200301-200508

85211BARM, FRONT WIPER, RH

main85211-68010i200301-200508

85212ABLADE, FR WIPER, RH

main85212-68010i200301-200508

main85212-68040i200508-200903

85214ARUBBER, WIPER, RH

main85214-44140i200301-200508

main85214-68020i200508-200903

85214BRUBBER, WIPER, LH

main85214-68010i200301-200508

main85214-68030i200508-200903

85221BARM, FRONT WIPER, LH

main85221-68010i200508-200903

85222ABLADE, FR WIPER, LH

main85222-68010i200301-200508

main85222-68030i200508-200903

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-44070i200508-200903

main85291-44090i200301-200508

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120i200301-200508

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200301-200508

9011906806

main90119-06806

9017910223

main90179-10223

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota WISH

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota WISH. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
