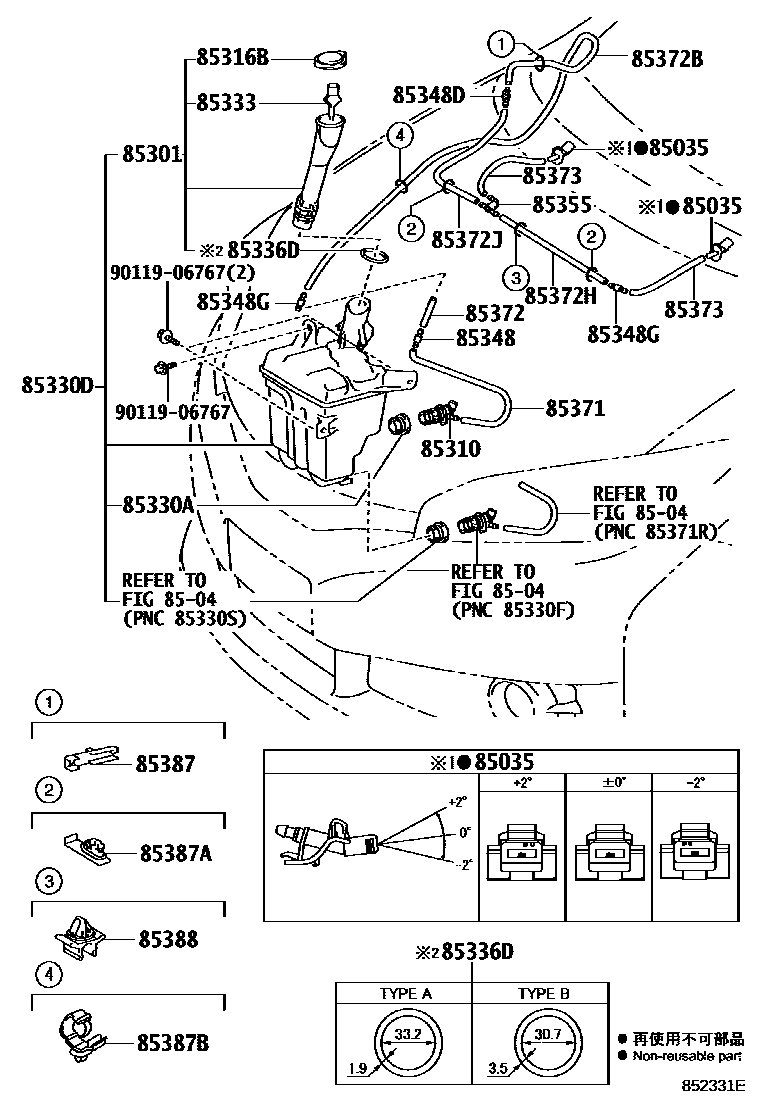

Toyota WISH — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i200903-201204

main85381-12340×2i200903-201204

main85381-12350×2i200903-201204

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85318-68020i200903-201204

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200903-201204

85316BCAP, WASHER, INLET

main85316-33120i200903-201204

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200903-201204

85330DJAR ASSY, WASHER

main85315-68020i200903-201204

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i200903-201204

85336DPACKING, WINDSHIELD WASHER JAR

main90099-14145i200903-201204

main90099-14159i201305

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200903-201204

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-17050i200903-201204

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260×2i200903-201204

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200903-201204

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200909-201204

main90446-07001i200903-200909

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200903-201204

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200903-201204

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200903-201204

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i200903-201204

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×6i200903-201204

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840i200903-201204

85387ACLAMP, WASHER, NO.2

main82711-52090×2i200903-201204

85387BCLAMP, WASHER, NO.3

main82711-1E350i200903-201204

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main90469-07002i200903-201204

9011906767

main90119-06767

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota WISH

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota WISH. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET.
