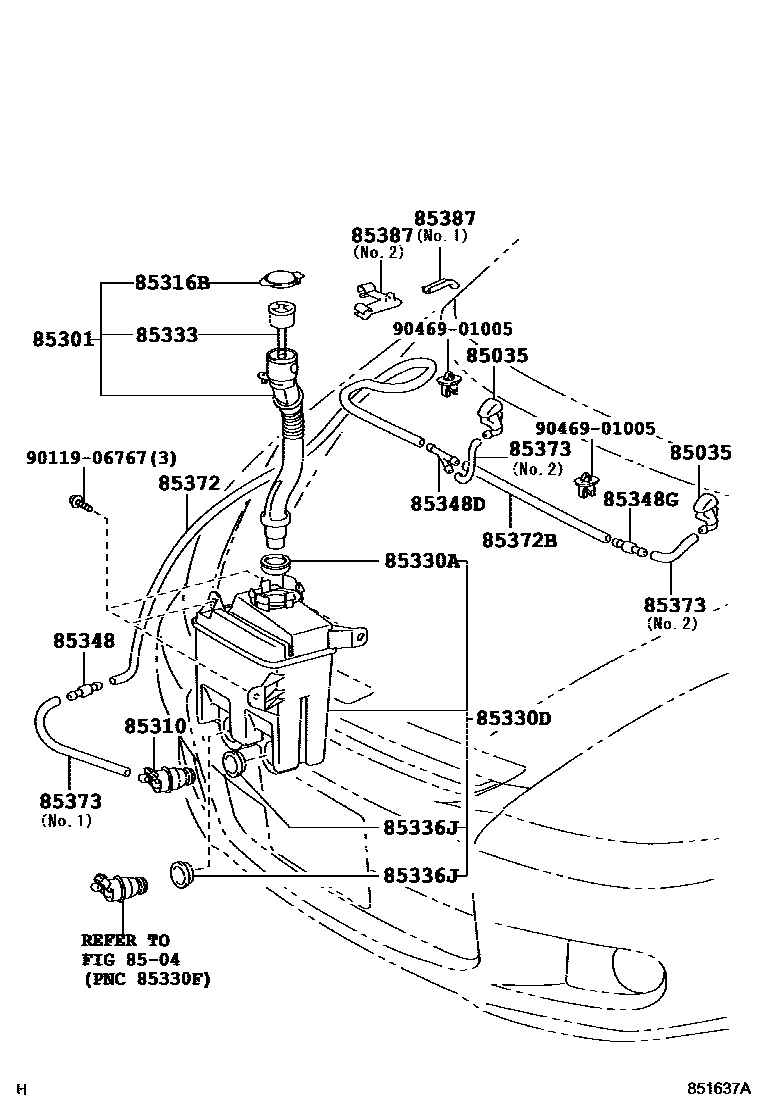

Toyota WISH — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-68010iANE1#,ZNE1#200301-200903

8504

85301INLET SUB-ASSY, WASHER

main85301-68010iANE1#,ZNE1#200301-200903

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iANE1#,ZNE1#200301-200903

85316BCAP, WASHER, INLET

main85316-33120iANE1#,ZNE1#200301-200903

85330ABUSH, WINDSHIELD WASHER JAR

main85336-30160iANE1#,ZNE1#200301-200903

85330DJAR ASSY, WASHER

main85315-68010iANE1#,ZNE1#200301-200903

85333FILTER, WINDSHIELD WASHER JAR

main85312-68010iANE1#,ZNE1#200301-200903

85336JPROTECTOR, WASHER JAR

main85336-60300iANE1#,ZNE1#200301-200903

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iANE1#,ZNE1#200301-200903

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85348-12250iANE1#,ZNE1#200301-200903

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iANE1#,ZNE1#200301-200903

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iANE1#,ZNE1#200301-200903

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-59024iANE1#,ZNE1#200301-200903

sub90446-07001

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iANE1#,ZNE1#200301-200903

main90099-33299iANE1#,ZNE1#200301-200903

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-13160iANE1#,ZNE1#200301-200903

main85387-22410iANE1#,ZNE1#200301-200903

9011906767

main90119-06767

9046901005

main90469-01005

18 parts on this diagram · 1 diagram in section
