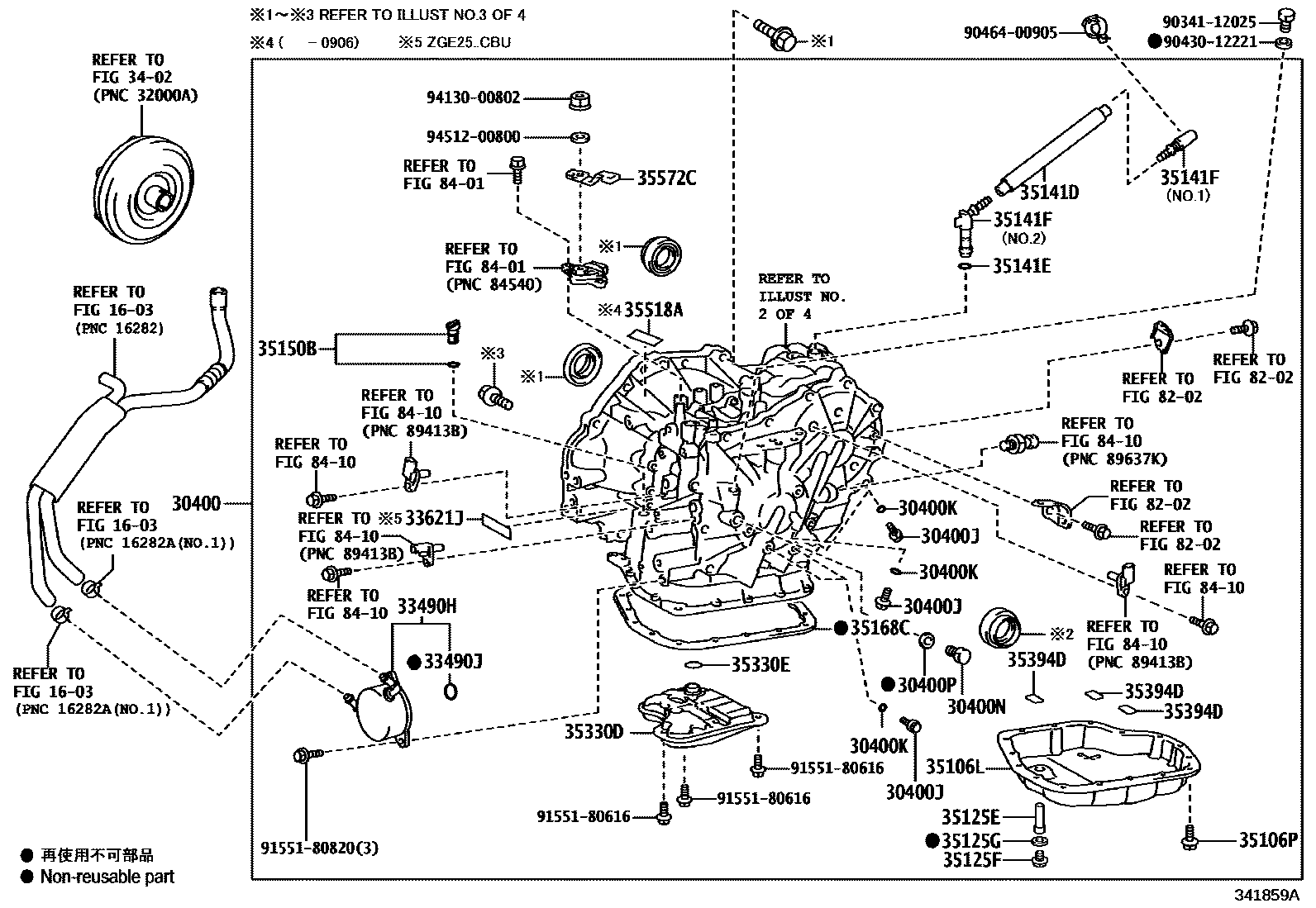

Toyota WISH — TRANSAXLE ASSY(CVT)
1603RADIATOR & WATER OUTLET
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33490HCOOLER ASSY, TRANSMISSION OIL
33490JRING, O (FOR TRANSMISSION OIL COOLER)
33621JLABEL, TRANSAXLE OIL INFORMATION
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35572CLEVER, TRANSMISSION CONTROL SHAFT
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9034112025
main90341-12025
9043012221
main90430-12221
9046400905
main90464-00905
9155180616
main91551-80616
9155180820
main91551-80820
9413000802
main94130-00802
9451200800
main94512-00800
35 parts on this diagram · 11 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota WISH
This section contains 128 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota WISH. Key components include: CYLINDER BLOCK, RADIATOR & WATER OUTLET, TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER), TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING).
