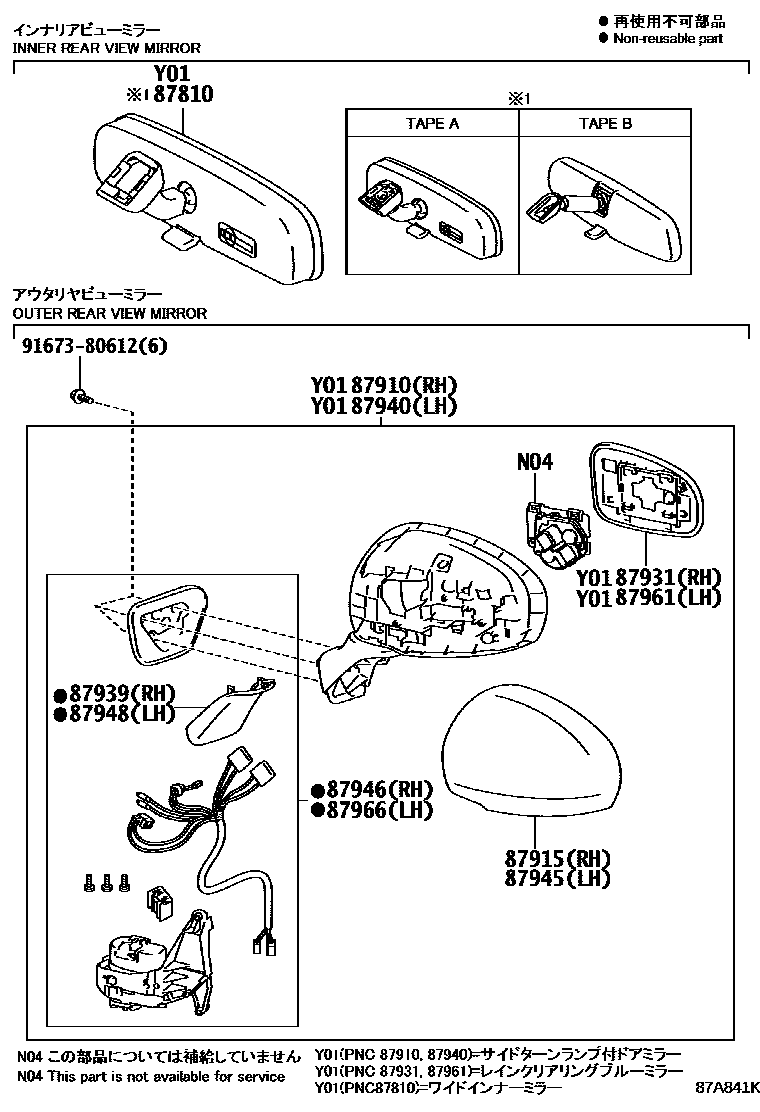

Toyota WISH — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G6
BLACK,202
RED M.M.,3R3
BLACKISH RED MC.,3R0
BRONZE M.M.,4T3
GRAYISH TEAL ME.,784
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
ORANGE ME.,4R8
SATIN BLUE M.M.,8V9
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G6
BLACK,202
BLACKISH RED MC.,3R0
RED M.M.,3R3
ORANGE ME.,4R8
BEIGE ME.,4T8
BRONZE M.M.,4T3
GRAYISH TEAL ME.,784
SATIN BLUE M.M.,8V9
DK.BLUE MC.,8S6
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G6
BLACK,202
RED M.M.,3R3
BLACKISH RED MC.,3R0
BRONZE M.M.,4T3
GRAYISH TEAL ME.,784
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
ORANGE ME.,4R8
SATIN BLUE M.M.,8V9
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G6
BLACK,202
BLACKISH RED MC.,3R0
RED M.M.,3R3
ORANGE ME.,4R8
BEIGE ME.,4T8
BRONZE M.M.,4T3
GRAYISH TEAL ME.,784
SATIN BLUE M.M.,8V9
DK.BLUE MC.,8S6
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9167380612
main91673-80612
12 parts on this diagram · 2 diagrams in section
MIRROR for Toyota WISH
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota WISH. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
