Toyota WISH — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1F7
GRAY ME.,1D2
BLACK MC.,209
BORDEAUX MC.,3P2
SUPER RED 5,3P0
GOLD ME.,585
DK.BLUE M.M.,8P4
LT.BLUE ME.,8Q6
DK.BLUE MC.,8S6
BLUE M.M.,8Q1
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1F7
GRAY ME.,1D2
BLACK MC.,209
BORDEAUX MC.,3P2
SUPER RED 5,3P0
GOLD ME.,585
DK.BLUE M.M.,8P4
LT.BLUE ME.,8Q6
DK.BLUE MC.,8S6
BLUE M.M.,8Q1
91511B0614
main91511-B0614

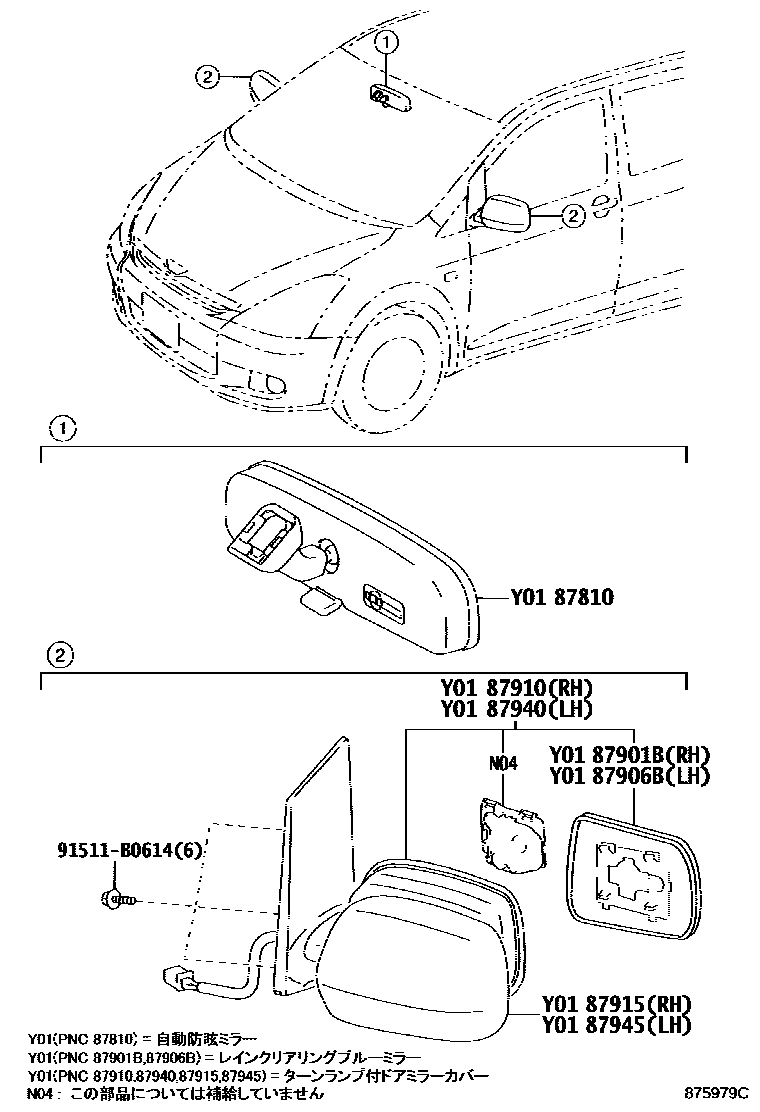

8 parts on this diagram · 1 diagram in section
MIRROR for Toyota WISH
This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota WISH. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
