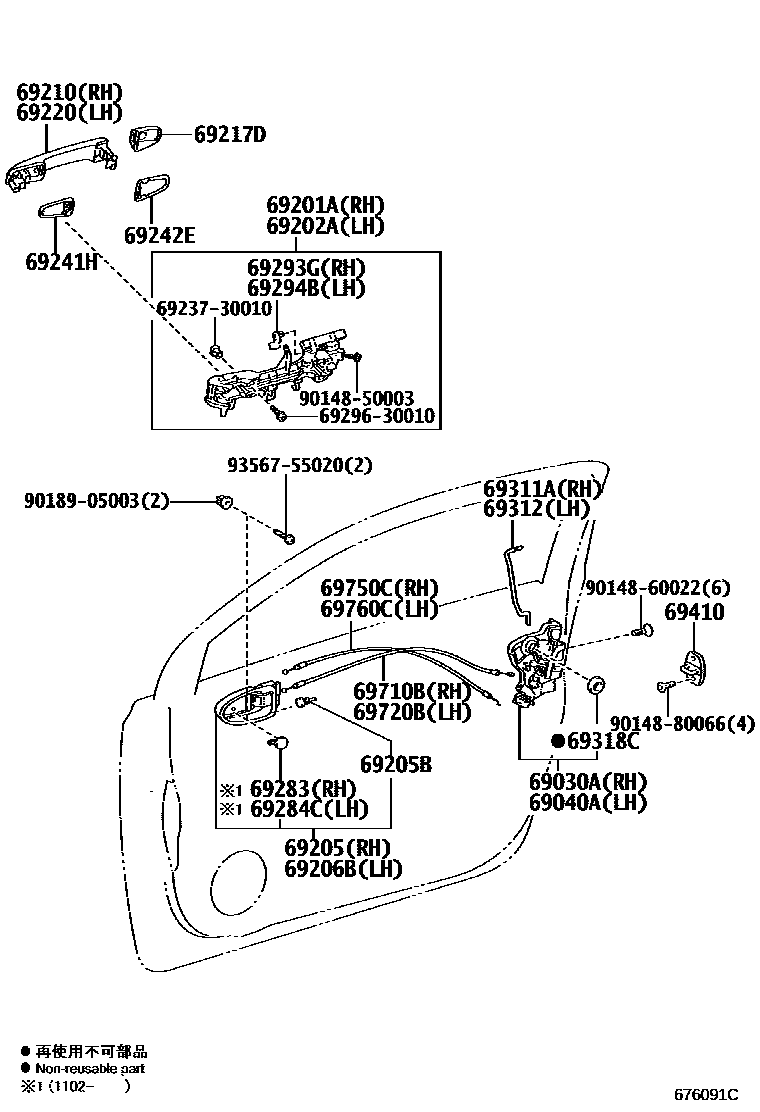

Toyota WISH — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
DK.GRAY,TRIM1#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
DK.GRAY,TRIM1#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-74030-B3supersedes 69211-74020-B4iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-D2supersedes 69211-74020-D3iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-E1supersedes 69211-74020-E1iZGE20,25..(18A,18S,18X)..CBU; ZGE20,25..18G201204-201710
main69210-74030-E2supersedes 69211-74020-E2iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-R1supersedes 69211-74020-J9iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-74030-B3supersedes 69211-74020-B4iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-C0supersedes 69211-74020-C0iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-D2supersedes 69211-74020-D3iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-E1supersedes 69211-74020-E1iZGE20,25..(18A,18S,18X)..CBU; ZGE20,25..18G201204-201710
main69210-74030-E2supersedes 69211-74020-E2iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
main69210-74030-R1supersedes 69211-74020-J9iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204-201711
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
31 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota WISH
This section contains 31 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota WISH. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
