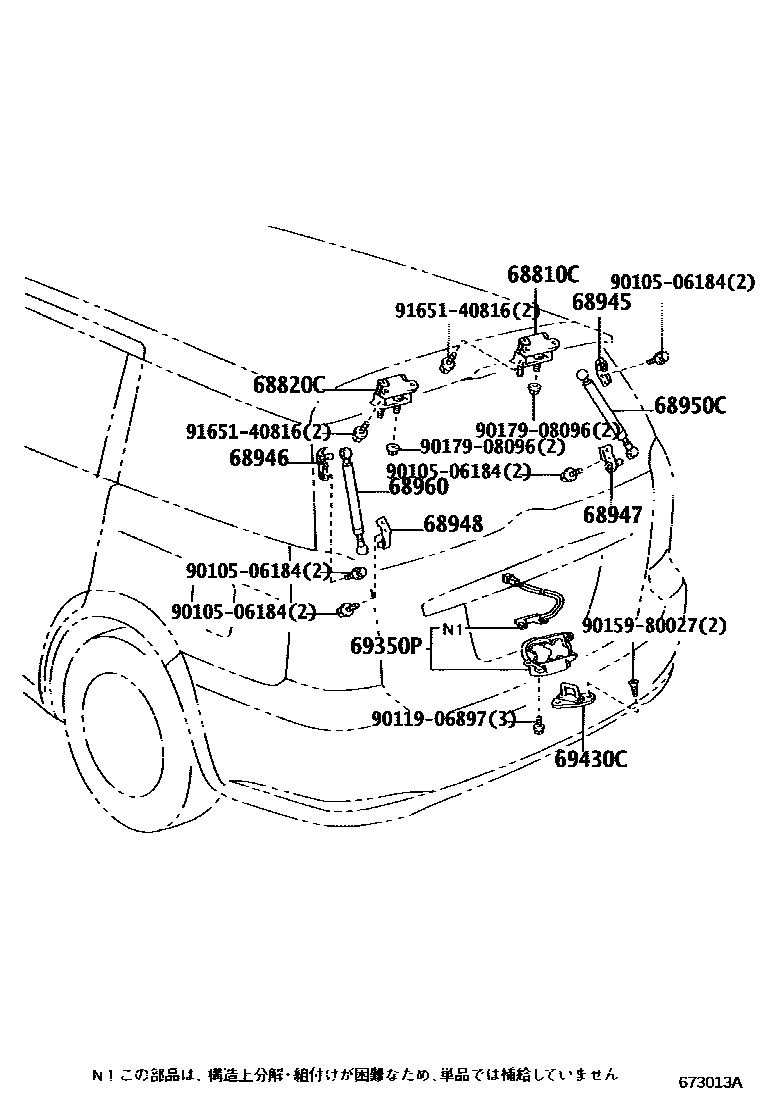

Toyota WISH — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050i200301-200508

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050i200301-200508

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-68010i200301-200508

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-68010i200301-200508

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-68010i200301-200508

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-68010i200301-200508

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W220i200301-200403

main68950-0W221i200404-200505

main68950-0W222i200506-200508

main68950-0W223i200703-200903

68960STAY ASSY, BACK DOOR, LH

main68960-0W210i200301-200403

main68960-0W211i200404-200505

main68960-0W212i200506-200508

main68960-0W213i200703-200903

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-21100i200301-200508

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-32070i200301-200508

9010506184

main90105-06184

9011906897

main90119-06897

9015980027

main90159-80027

9017908096

main90179-08096

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota WISH

This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota WISH. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, BRACKET, BACK DOOR DAMPER STAY, LOWER RH.
