Toyota WISH — ANTENNA

86011MFILTER, NOISE

main90980-04134i200404-200508

86101CORD SUB-ASSY, ANTENNA

main86101-68020supersedes 86101-68010i200301-200404

main86101-68060i200404-200508

main86101-68070supersedes 86101-68010i200508-200903

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-68020i200301-200508

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-20310i200301-200508

86396NUT, ANTENNA

main86396-20040i200301-200508

8281721090PROTECTOR, WIRING HARNESS, NO.1

main82817-21090

8537158010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-58010

9011906915

main90119-06915

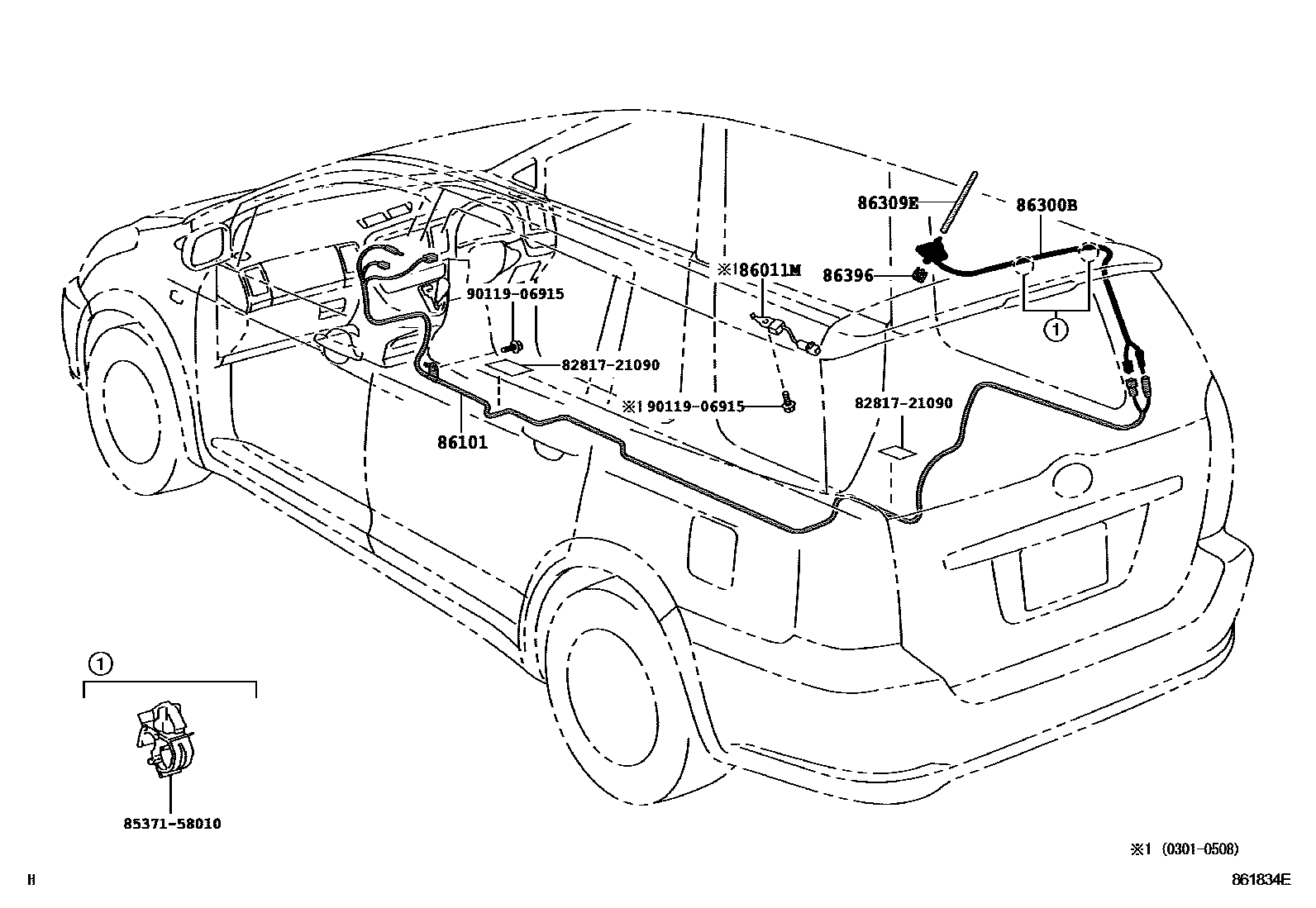

8 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota WISH

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota WISH. Key components include: FILTER, NOISE, ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.1, POLE SUB-ASSY, ROOF ANTENNA.
