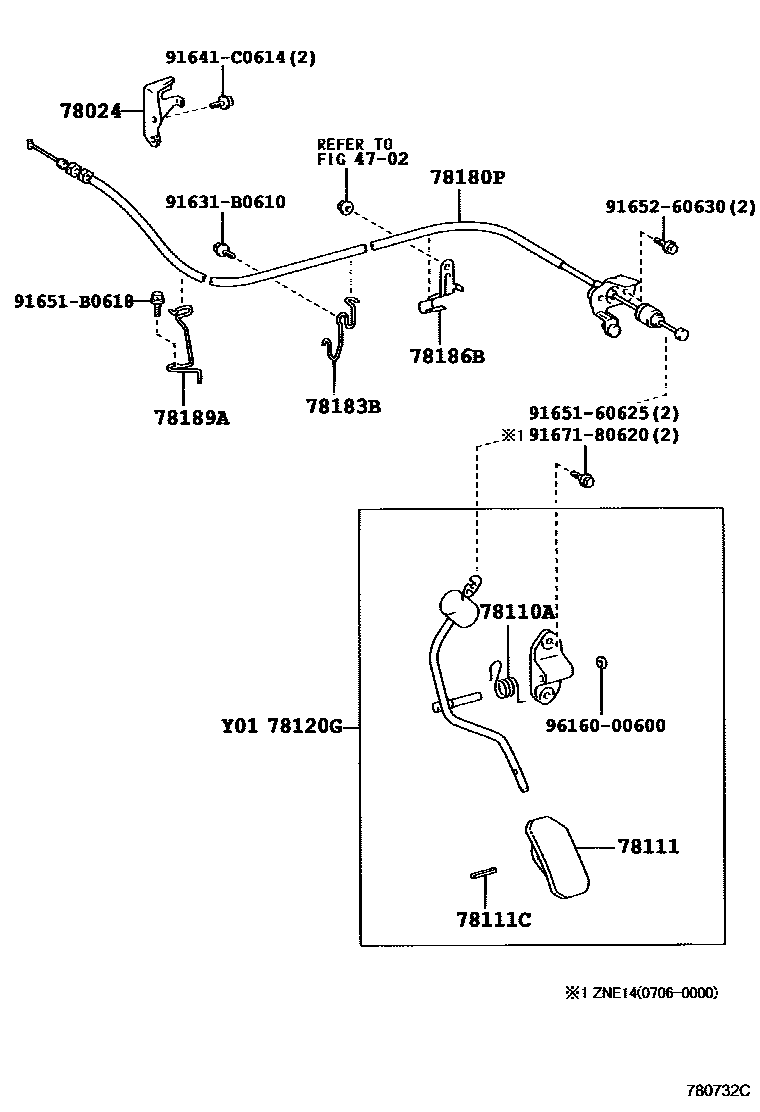

Toyota WISH — ACCELERATOR LINK

0001 1 0003 1

4702

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78184-12360iZNE1#200301-200903

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03307iZNE1#200301-200903

78111PEDAL, ACCELERATOR

main78111-32020iANE1#,ZNE1#200301-200903

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iANE1#,ZNE1#200301-200903

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12340iZNE1#200301-200903

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-68010iZNE1#200301-200309

sub78180-68011

main78180-68011iZNE1#200309-200903

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-68010iZNE1#200301-200903

78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2

main78186-12370iZNE1#200301-200903

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100iZNE1#200301-200903

91631B0610

main91631-B0610

91641C0614

main91641-C0614

9165160625

main91651-60625

91651B0618

main91651-B0618

9165260630

main91652-60630

9167180620

main91671-80620

9616000600

main96160-00600

17 parts on this diagram · 2 diagrams in section
