Toyota WISH — ABS & VSC

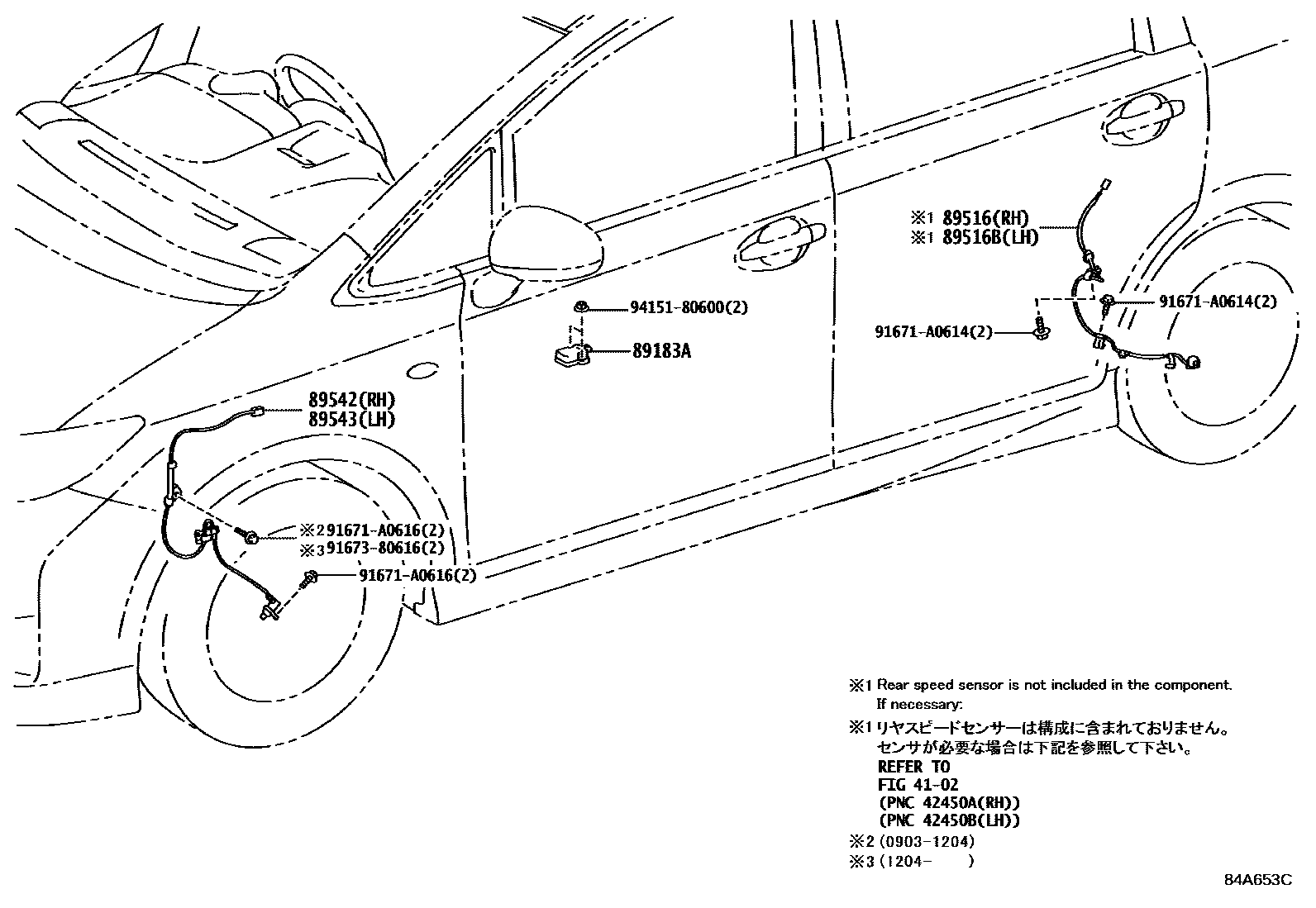

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

89183ASENSOR, YAWRATE

main89183-48030i201204

89516WIRE, SKID CONTROL SENSOR

main89516-68050i201204-201711

main89516-68070i201204-201711

89516BWIRE, SKID CONTROL SENSOR

main89516-68060i200903-201204

main89516-68080i200903-201204

89542SENSOR, SPEED, FRONT RH

main89542-68020i201204-201505

main89542-68040i201505

89543SENSOR, SPEED, FRONT LH

main89543-68020i200903-201204

main89543-68040i201505

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

10 parts on this diagram · 3 diagrams in section

ABS & VSC for Toyota WISH

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota WISH. Key components include: REAR AXLE SHAFT & HUB, SENSOR, YAWRATE, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH.
