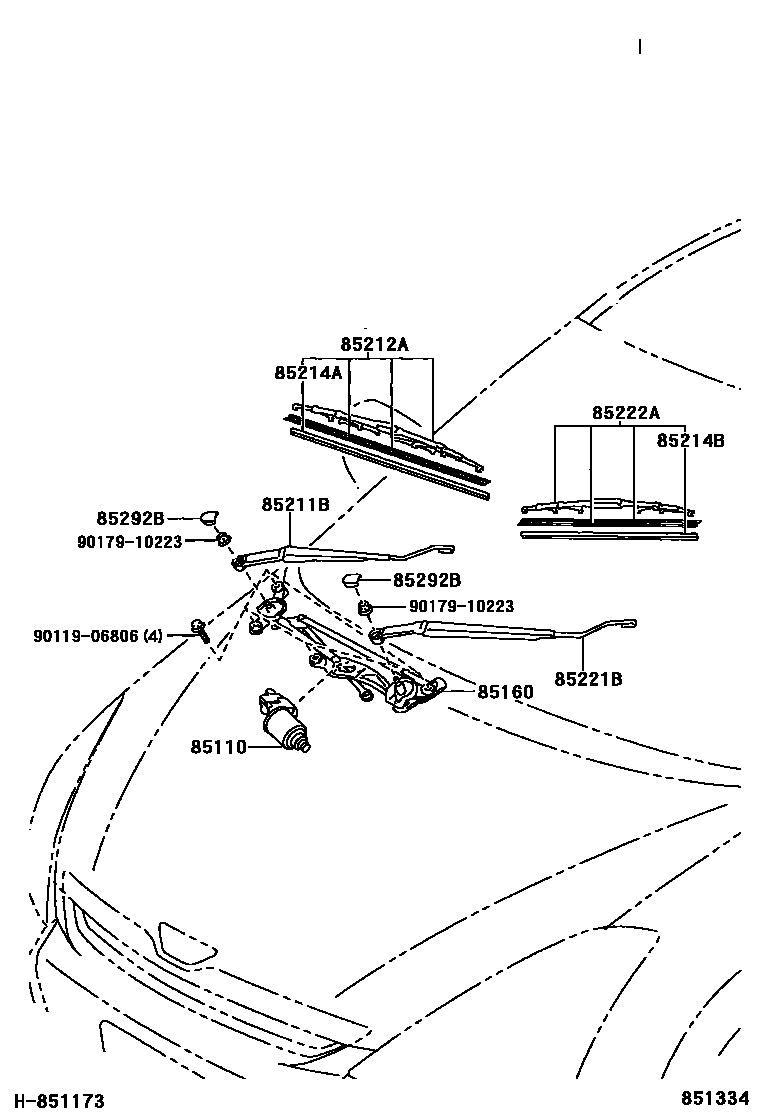

Toyota WISH — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-68010iANE11..TH200312-200512

sub85110-68020

main85110-68030iANE1#..TAIW200408-200703

85160LINK ASSY, WINDSHIELD WIPER

main85150-68010iANE11,ZNE10..RHD200312-200512

main85150-68020iANE1#..TAIW200408-200703

85211BARM, FRONT WIPER, RH

main85211-0M010iANE1#..TAIW200408-200703

main85211-68010iANE11..TH200312-200512

85212ABLADE, FR WIPER, RH

main85212-0M010iANE12200408-200511

sub85212-0M011

main85212-0M011iANE1#..TAIW200512-200703

main85212-68010iANE11..TH200312-200512

main85212-68040iANE11,ZNE10..RHD200512

sub85212-12480

85214ARUBBER, WIPER, RH

main85214-44140iANE11..TH200312-200512

main85214-68010iANE12200408-200511

sub85214-68011

main85214-68011iANE1#..TAIW200512-200703

main85214-68020iANE11,ZNE10..RHD200512

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-44140iANE1#..TAIW200408-200703

main85214-68010iANE11..TH200312-200512

sub85214-68011

main85214-68030iANE11,ZNE10..RHD200512

85221BARM, FRONT WIPER, LH

main85221-0M010iANE1#..TAIW200408-200703

main85221-68010iANE11,ZNE10..RHD200312-200512

85222ABLADE, FR WIPER, LH

main85222-0M010iANE1#..TAIW200408-200703

main85222-68010iANE11200312-200511

sub85222-68011

main85222-68030iANE11,ZNE10..RHD200512

sub85222-12860

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iANE11..TH200312-200703

9011906806

main90119-06806

9017910223

main90179-10223

11 parts on this diagram · 1 diagram in section
