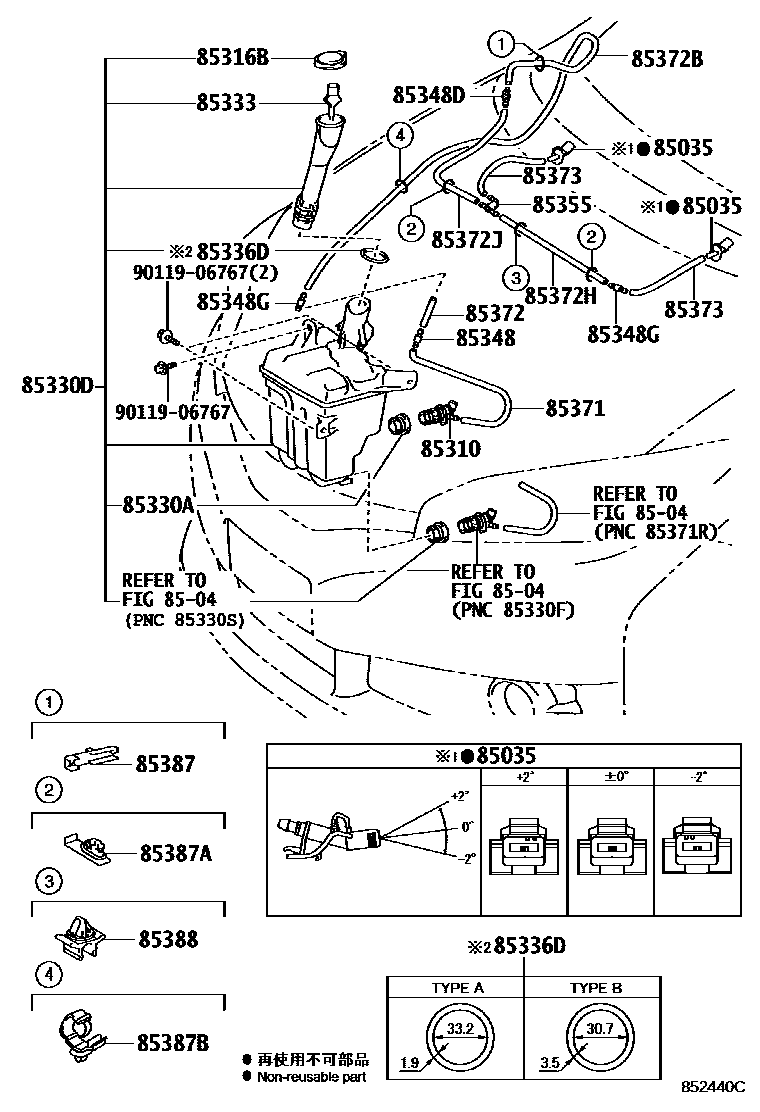

Toyota WISH — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i201212-201412

ANGLE 0

main85381-12340×2i200911-201212

ANGLE -2

main85381-12350×2i200911-201212

ANGLE +2

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201208-201212

sub85330-0D100

85316BCAP, WASHER, INLET

main85316-33120i200911-201212

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200911-201212

85330DJAR ASSY, WASHER

main85315-68020i200911-201208

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i201212

85336DPACKING, WINDSHIELD WASHER JAR

main90099-14145i201212-201303

TYPE A:REFER ILLUST.

main90099-14159i201208-201212

TYPE B:REFER ILLUST.

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200911-201208

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-17050i200911-201212

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260×2i200911-201212

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200911-201212

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001i200911-201208

L=1800(*H,L=250)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200911-201212

L=1450(*H,L=50)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200911-201212

L=1800(*H,L=1055)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200911-201212

L=1800(*H,L=480)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i200911-201212

L=1800(*H,L=460)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×6i200911-201212

L=1450(*H,L=210)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840i200911-201212

85387ACLAMP, WASHER, NO.2

main82711-52090×2i200911-201212

85387BCLAMP, WASHER, NO.3

main82711-1E350i200911-201212

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-25160i200911-201212

9011906767

main90119-06767

23 parts on this diagram · 1 diagram in section
