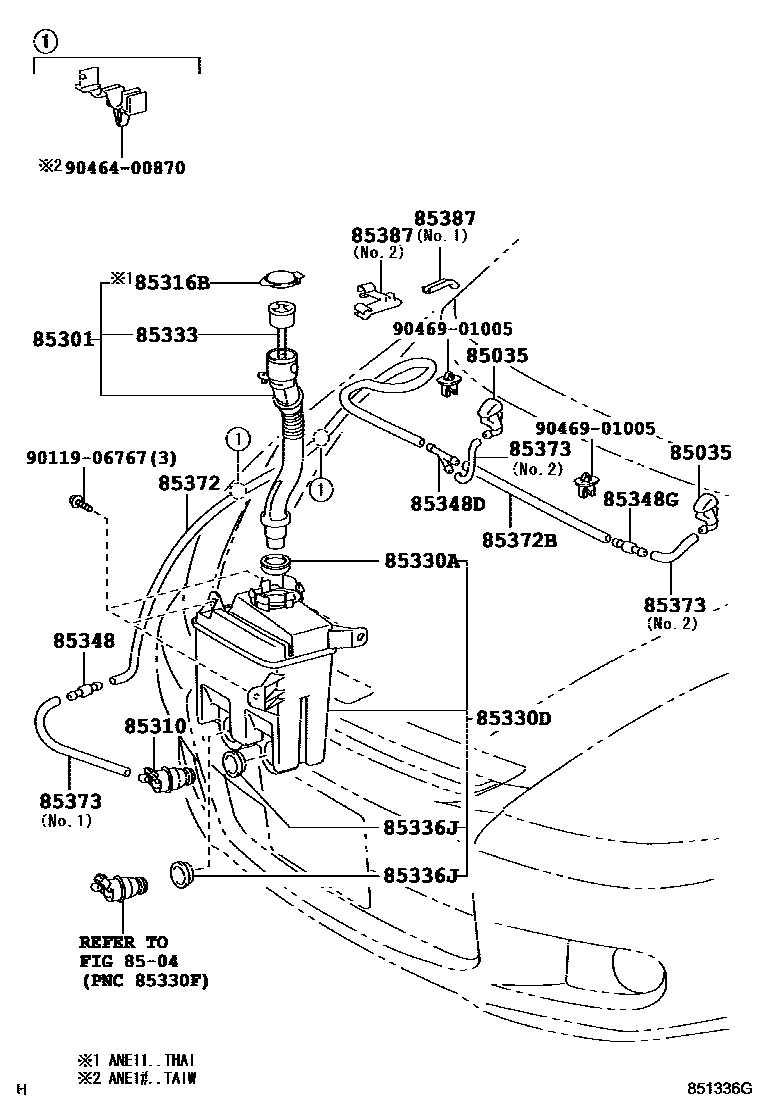

Toyota WISH — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-68010×2iANE11,ZNE10..RHD200512

main85381-68020×2iANE1#..TAIW200408-200703

8504

85301INLET SUB-ASSY, WASHER

main85301-68010iANE1#..TAIW200312-200703

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iANE11..TH200312-200512

sub85330-0D100

85316BCAP, WASHER, INLET

main85316-33120iANE1#,ZNE10200512

85330ABUSH, WINDSHIELD WASHER JAR

main85336-30160iANE11..TH200312-200512

85330DJAR ASSY, WASHER

main85315-68010iANE11..TH200312-200512

85333FILTER, WINDSHIELD WASHER JAR

main85312-68010iANE12;ANE11..06S200312-200703

85336JPROTECTOR, WASHER JAR

main85336-60300×2iANE11..TH200312-200512

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iANE1#,ZNE10200512

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85348-12250iANE11..TH200312-200512

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iANE11..TH200312-200512

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iANE11..TH200312-200512

L=1800(*H,L=1750)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-59024iANE11..TH200312-200512

L=1800(*H,L=470)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iANE11..TH200312-200512

L=1450(*H,L=200),NO.1

main90099-33299×2iANE1#..TAIW200312-200703

L=1000(*H,L=350),NO.2

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-13160iANE1#,ZNE10200512

NO.1

main85387-22410iANE1#..TAIW200312-200703

NO.2

9011906767

main90119-06767

9046400870

main90464-00870

9046901005

main90469-01005

19 parts on this diagram · 1 diagram in section
