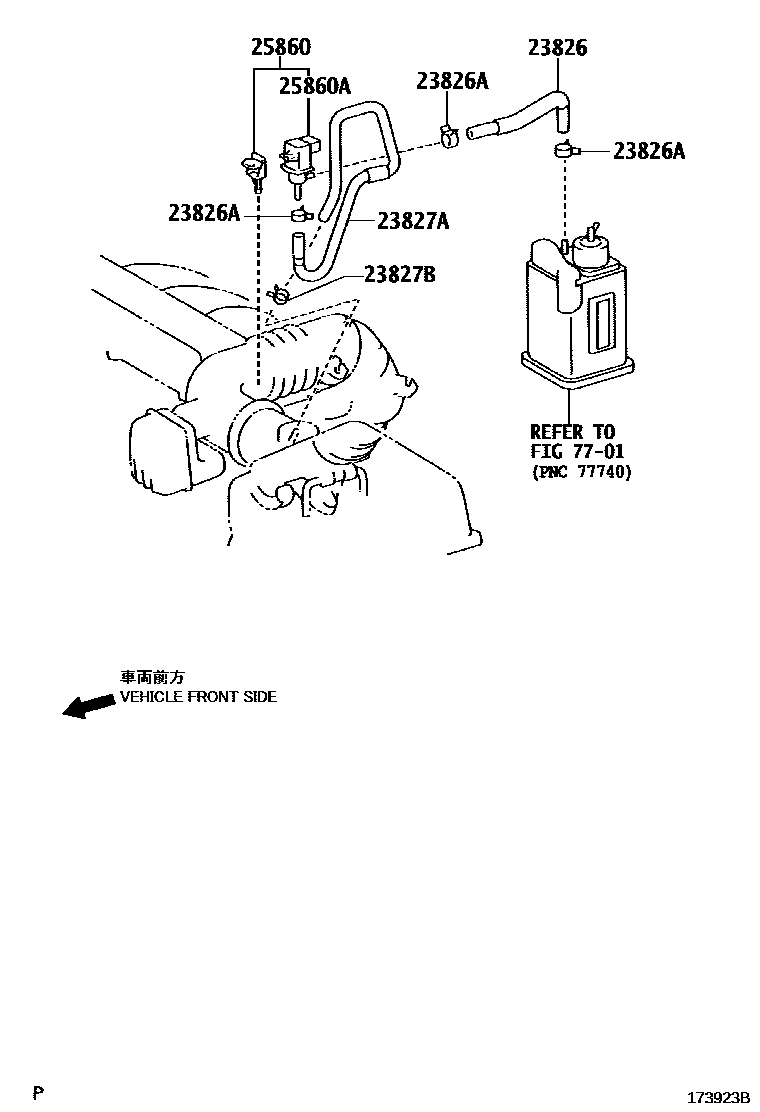

Toyota WISH — VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-22100i1ZZFE..ZNE10200804-200903

main23826-28210i1AZFE..ANE11..TH200312-200910

main23826-28230i1AZFE..ANE1#..TAIW200408-200909

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100i1AZFE..ANE12;1AZFE..ANE11..06S200312-200910

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28230i1AZFE..ANE11..TH200312-200703

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41000i1AZFE..ANE11..TH200312-200703

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28130i1AZFE..ANE11..TH200312-200903

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12273i1AZFE..ANE11..TH200312-200903

7701

7 parts on this diagram · 2 diagrams in section
