Toyota WISH — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1CONBINATION SWITCH 0010 1CONBINATION SWITCH 0011 1ROOF,FLOOR,DOOR,SEAT & LUGGAG0012 1ROOF,FLOOR,DOOR,SEAT & LUGGAG

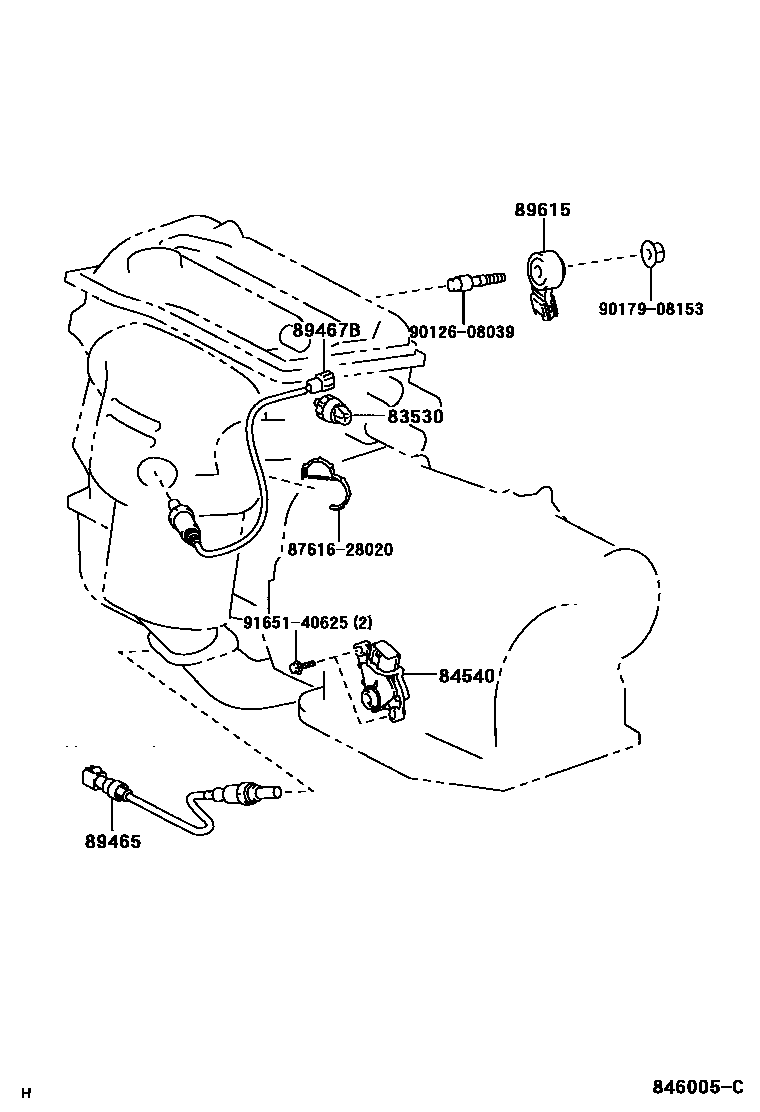

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iANE1#..TAIW200312-200703

DENSO

main83530-60020iANE1#,ZNE10200512

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-32110iANE12;ANE11..06S200312-200703

main84540-46010iZNE10200804-200903

89465SENSOR, OXYGEN

main89465-0M010iANE11..TAIW200408-200703

main89465-68030iANE12200312-200503

main89465-68040iZNE10200804-200903

89467BSENSOR, AIR FUEL RATIO

main89467-12100iZNE10200804-200903

main89467-68010iANE1#..TAIW200312-200703

89615SENSOR, KNOCK CONTROL

main89615-20090iANE1#,ZNE10200512

8761628020CLAMP, COOLING UNIT CASE

main87616-28020

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

9 parts on this diagram · 12 diagrams in section
