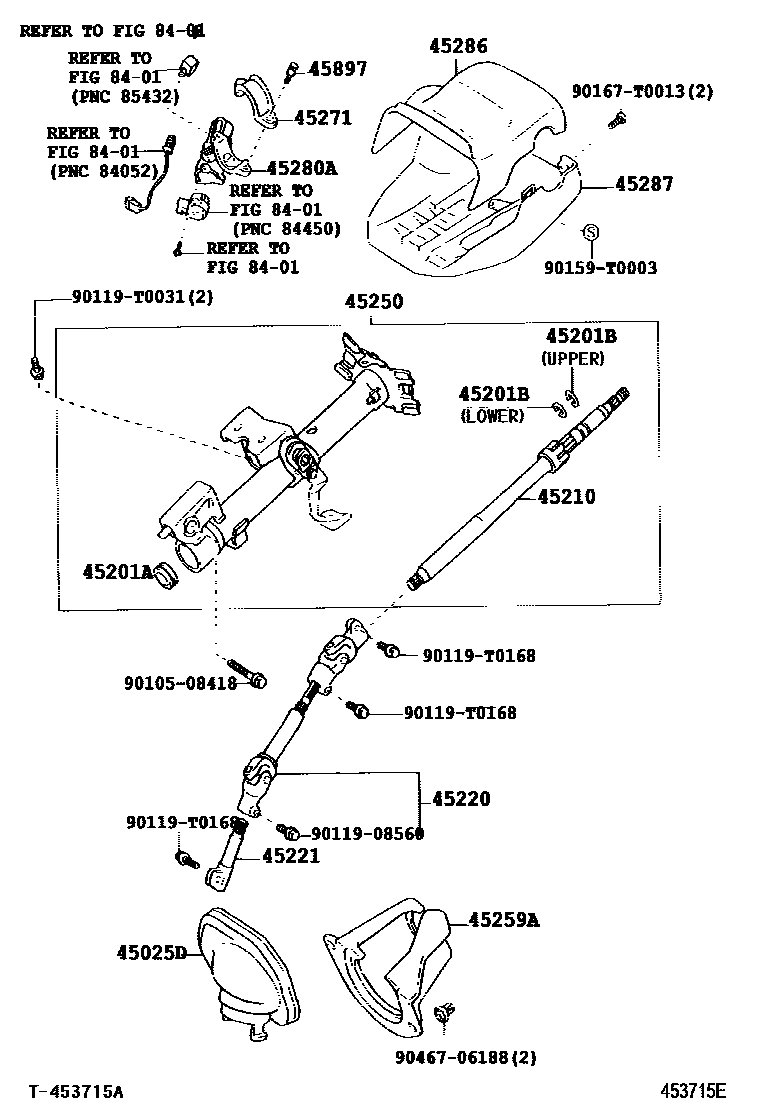

Toyota WISH — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,UPPER
T=1.20,(L),LOWER
T=1.20,(J),LOWER
T=1.20,LOWER
T=1.20,UPPER
45210SHAFT ASSY, STEERING MAIN
(L)
(L)
(J)
45220SHAFT ASSY, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45271CLAMP, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BLACK,TRIM1#
ORCHID BROWN,TRIM0#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM1#
ORCHID BROWN,TRIM0#
45897BOLT, STEERING LOCK SET
8401
9010508418
main90105-08418
9011908560
main90119-08560
90119T0031
main90119-T0031
90119T0168
main90119-T0168
90159T0003
main90159-T0003
90167T0013
main90167-T0013
9046706188
main90467-06188
21 parts on this diagram · 3 diagrams in section
