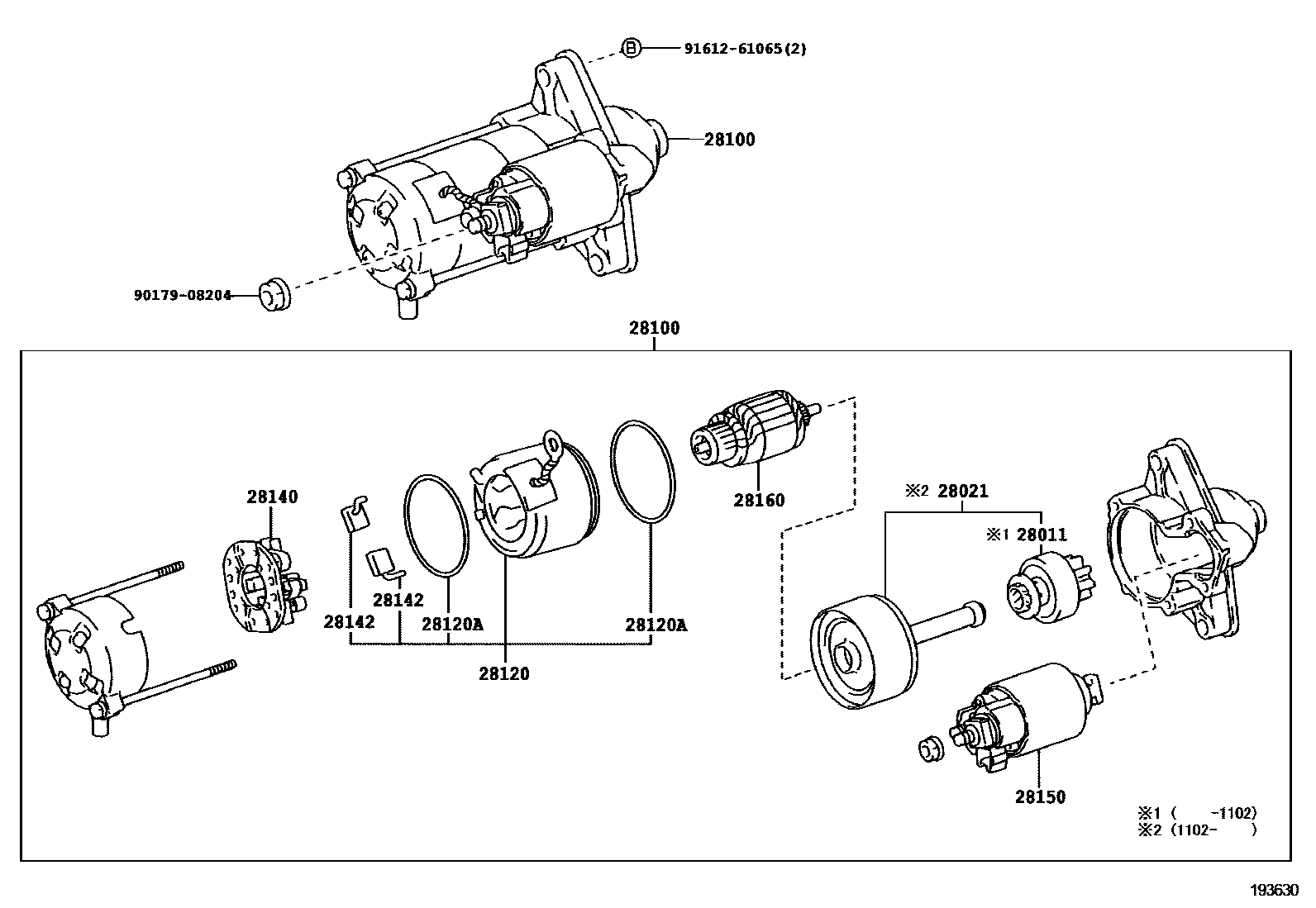

Toyota WISH — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i2ZRFAE,3ZRFAE..ZGE2#200909-201102

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70020i2ZRFAE,3ZRFAE..ZGE2#201204

28100STARTER ASSY

main28100-37021i2ZRFAE..ZGE20201006-201204

12V 0.8KW

main28100-37031i3ZRFAE..ZGE22201204-201407

12V 1.0KW

main28100-37032i3ZRFAE..ZGE22201408-201505

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-40130i3ZRFE..ZGE21200909-201005

main28120-47120i2ZRFAE..ZGE20201006-201204

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i2ZRFAE,3ZRFAE..ZGE2#200909-201204

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i2ZRFAE,3ZRFAE..ZGE2#200909-201204

28142BRUSH, STARTER

main28142-70020×2i3ZRFE..ZGE21200909-201005

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i2ZRFAE,3ZRFAE..ZGE2#200909-201204

28160ARMATURE ASSY, STARTER

main28160-70021i2ZRFAE..ZGE20201006-201204

main28160-70050i3ZRFE..ZGE21200909-201005

9017908204

main90179-08204

9161261065

main91612-61065

11 parts on this diagram · 1 diagram in section
