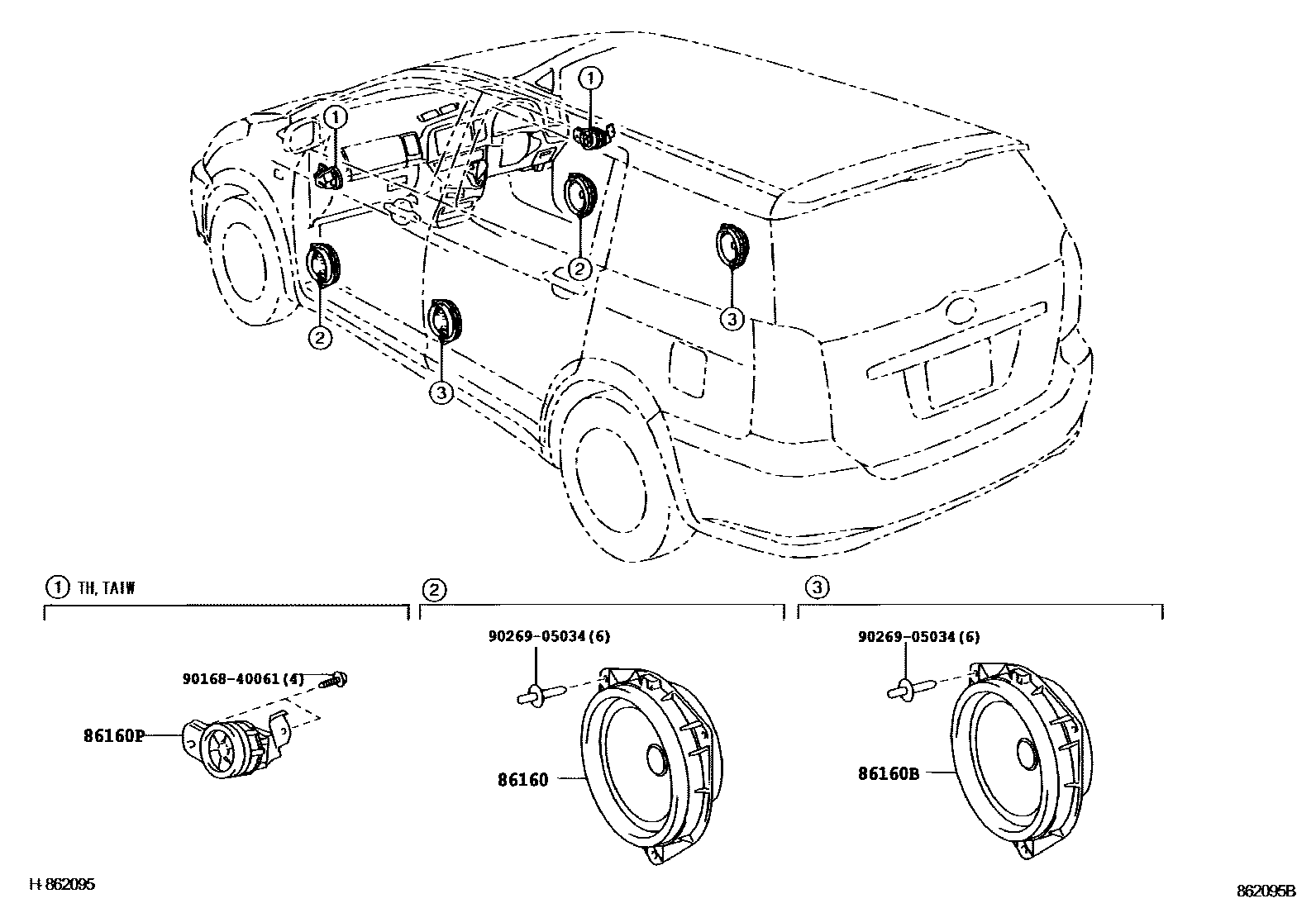

Toyota WISH — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0K010iANE11..TH200312-200512

main86160-0M070iANE1#..TAIW200408-200703

main86160-22A10iZNE10200804-200903

86160BSPEAKER ASSY, REAR

main86160-0K010iANE11..TH200512

main86160-0M070iANE1#..TAIW200408-200703

main86160-22A10iZNE10200804-200903

86160PSPEAKER ASSY, FRONT NO.2

main86160-0M020iANE11..TH200312-200910

RH

main86160-0M030iANE11..TH200312-200910

LH

main86160-0M050iANE1#..TAIW200408-200909

RH

main86160-0M060iANE1#..TAIW200408-200909

LH

9016840061

main90168-40061

9026905034

main90269-05034

5 parts on this diagram · 1 diagram in section
