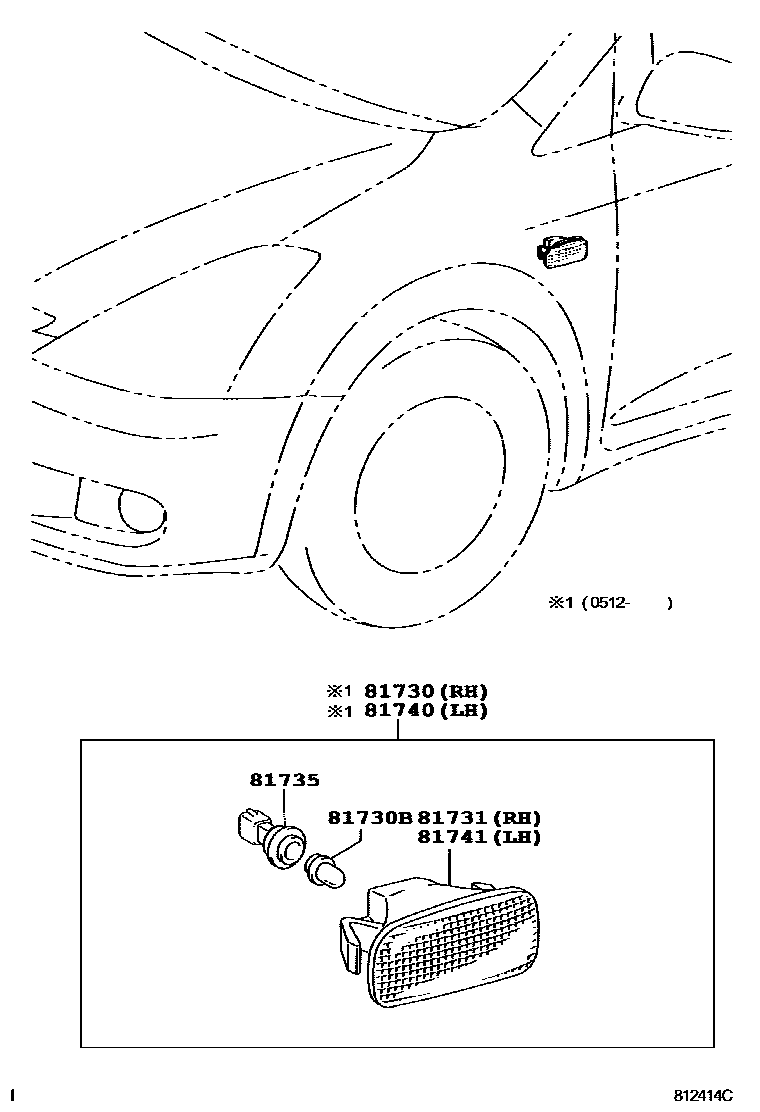

Toyota WISH — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1 0003 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-06020iANE1#..TAIW200408-200703

main81730-06040iANE1#..TAIW200703-200909

sub81730-06041

main81730-53010iANE11..TH200512-200607

sub81730-53011

main81730-53011iANE11,ZNE10..RHD200607-200910

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-15012iANE1#..TAIW200408-200703

12V 5W

main90981-TF005iANE1#..TAIW200703

12V 5W

main99132-12050iANE11..TH200312-200512

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-53010iANE11..TH200312-200512

sub81731-53011

main81731-53011iANE11,ZNE10..RHD200512

main81731-8C000iANE1#..TAIW200408-200703

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001iANE11,ZNE10..RHD200312-200512

main9008C-07001iANE1#..TAIW200408-200703

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-06020iANE1#..TAIW200408-200703

main81730-53010iANE11..TH200512-200607

sub81730-53011

main81730-53011iANE11,ZNE10..RHD200607-200910

main81740-06020iANE1#..TAIW200703-200909

sub81740-06021

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-53010iANE11..TH200312-200512

sub81731-53011

main81731-53011iANE11,ZNE10..RHD200512

main81731-8C000iANE1#..TAIW200408-200703

6 parts on this diagram · 3 diagrams in section
