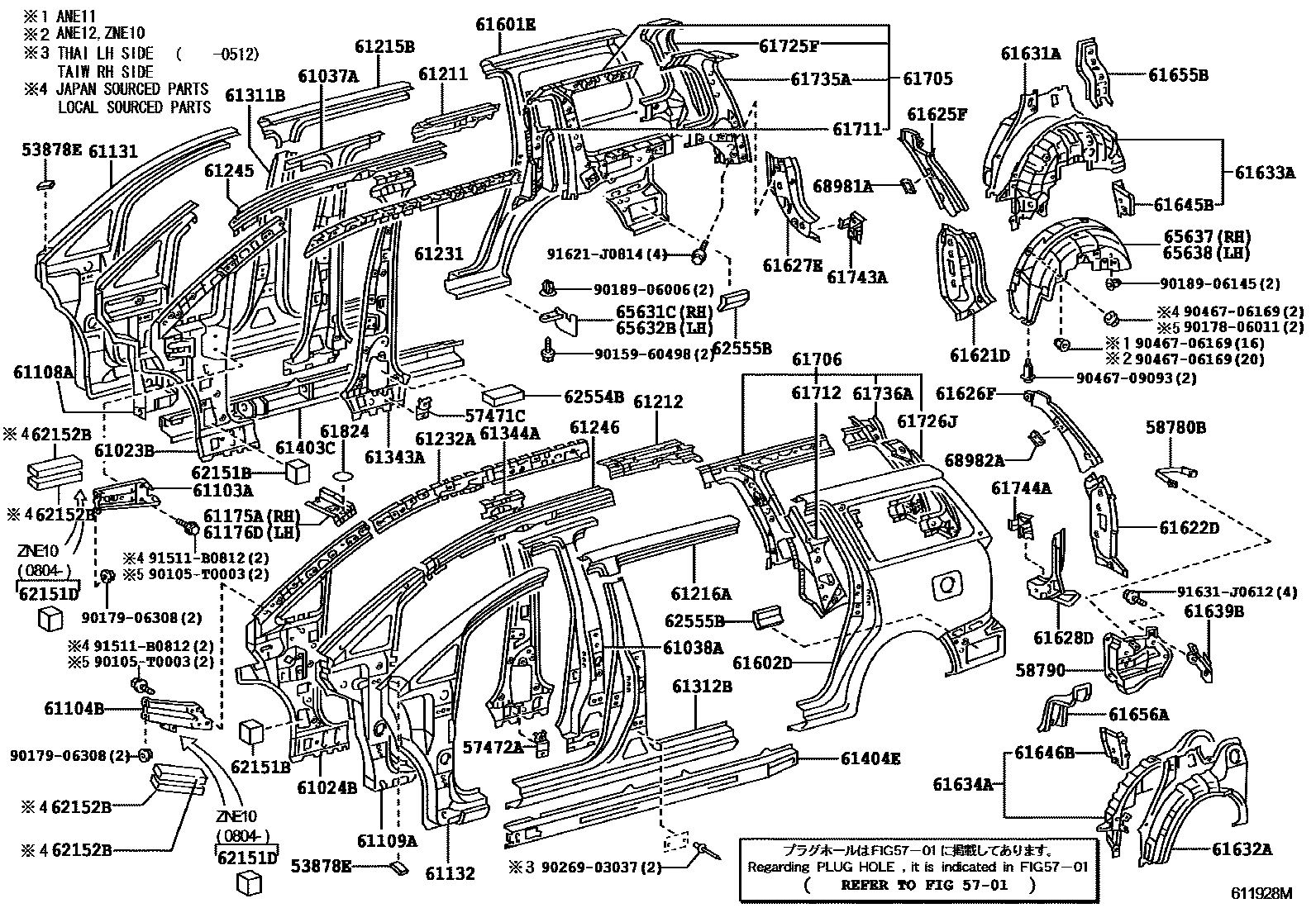

Toyota WISH — SIDE MEMBER
53878ESPACER, FRONT FENDER
5701
57471CREINFORCE, SEAT BELT ANCHOR TO FLOOR MEMBER, RH
57472AREINFORCE, SEAT BELT ANCHOR TO FLOOR MEMBER, LH
58780BBAND ASSY, TOOL BOX
58790CARRIER ASSY, JACK
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61104BREINFORCEMENT SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61216ARAIL, ROOF SIDE, OUTER REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232ARAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61601EPANEL SUB-ASSY, QUARTER, OUTER RH
61602DPANEL SUB-ASSY, QUARTER, OUTER LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61639BBASE, JACK SUPPORT CARRIER
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61725FREINFORCEMENT, BACK DOOR OPENING SIDE, UPPER RH
61726JREINFORCEMENT, BACK DOOR OPENING SIDE, UPPER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61824PLATE, NOISE CONTROL, NO.1
62151DPAD, COWL SIDE SILENCER
sub61824-12090
62152BPAD, COWL SIDE SILENCER, NO.2
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65632BPLATE, REAR WHELL HOUSE, FRONT LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
68981ARETAINER, BACK DOOR STAY, RH
68982ARETAINER, BACK DOOR STAY, LH
90105T0003
main90105-T0003
9015960498
main90159-60498
9017806011
main90178-06011
9017906308
main90179-06308
9018906006
main90189-06006
9018906145
main90189-06145
9026903037
main90269-03037
9046706169
main90467-06169
9046709093
main90467-09093
91511B0812
main91511-B0812
91621J0814
main91621-J0814
91631J0612
main91631-J0612
83 parts on this diagram · 1 diagram in section
