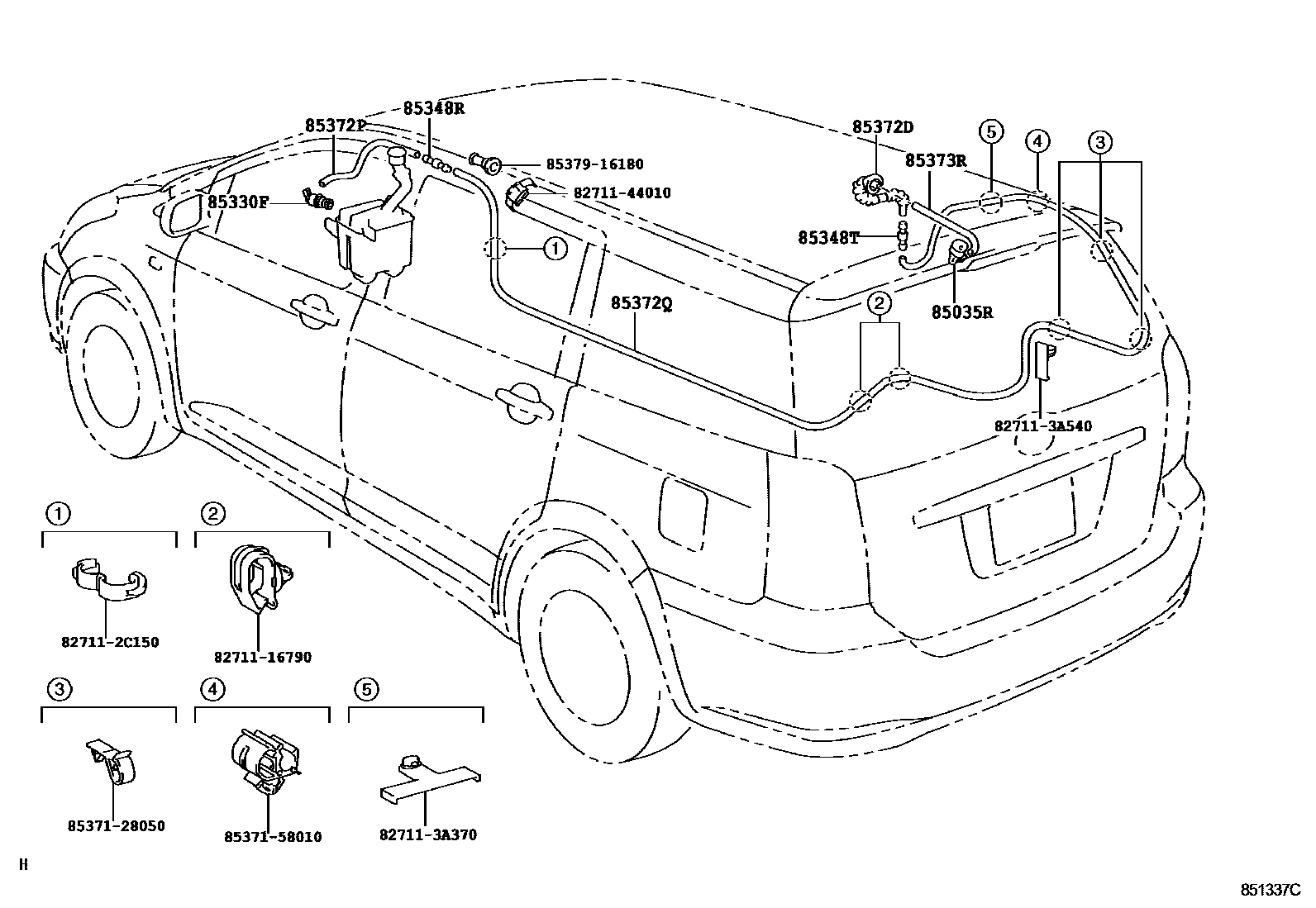

Toyota WISH — REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-68010iANE11..TH200312-200703

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iANE12;ANE11..06S200312-200910

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iANE11..TH200312-200703

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iANE11..TH200312-200703

85372DGROMMET, REAR WASHER HOSE

main85373-44010iANE11..TH200312-200703

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iANE11..TH200312-200703

L=1000(*H,L=80)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-59326iANE11..TH200312-200703

L=5750

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iANE11..TH200312-200703

L=1000(*H,L=340)

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827112C150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C150

827113A370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A370

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8271144010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44010

8537128050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28050

8537158010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-58010

8537916180JOINT

main85379-16180

16 parts on this diagram · 1 diagram in section
