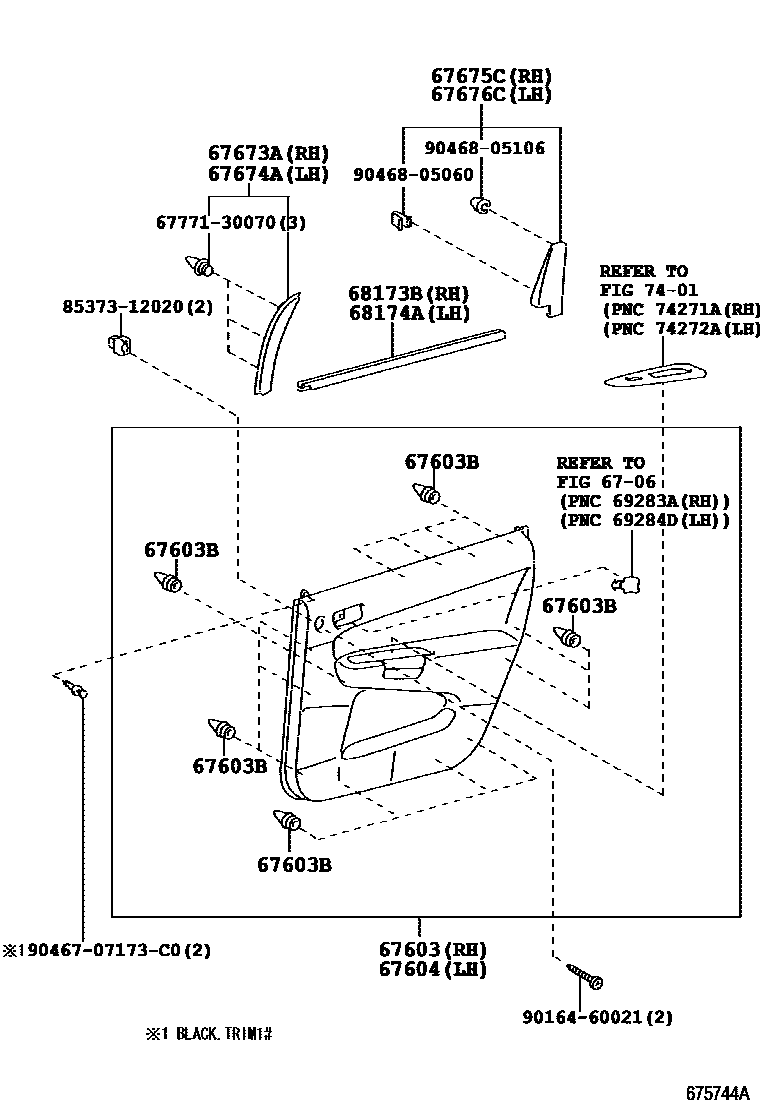

Toyota WISH — REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-0M010-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

main67630-0M020-A0iANE1#..20E,ZAER200408-200703

IVORY,TRIM0#

main67630-0M020-B0iANE1#..TAIW200408-200703

DK.GRAY,TRIM1#

main67630-0M030-A0iANE12..20E200703-200909

IVORY,TRIM0#

main67630-0M030-B0iANE1#..TAIW200703-200909

DARK GRAY,TRIM1#

main67630-68010-B3iZNE10200804-200903

MEDIUM GRAY,TRIM1#

main67630-68090-B1iANE11..06S..TH200512-200910

DK.GRAY,TRIM1#

main67630-68090-B1iANE11..06S..TH200512-200910

S PACKAGE,DK.GRAY,TRIM1#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-09203iANE1#..TAIW200410-200703

NO.2

main90467-09206iANE11,ZNE10..RHD200312-200512

main90467-09206iANE12200312-200410

NO.1 & NO.2

main90467-09206iANE1#..TAIW200410-200703

NO.1

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-0M010-B0iANE11..06S..TH200312-200910

DK.GRAY,TRIM1#

main67640-0M020-A0iANE1#..20E,ZAER200408-200703

IVORY,TRIM0#

main67640-0M020-B0iANE1#..TAIW200408-200703

DK.GRAY,TRIM1#

main67640-0M030-A0iANE12..20E200703-200909

IVORY,TRIM0#

main67640-0M030-B0iANE1#..TAIW200703-200909

DARK GRAY,TRIM1#

main67640-68010-B3iZNE10200804-200903

MEDIUM GRAY,TRIM1#

main67640-68090-B1iANE11..07S200512-200910

S PACKAGE,DK.GRAY,TRIM1#

main67640-68090-B1iANE11..07S200512-200910

DK.GRAY,TRIM1#

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0M010iANE1#..TAIW200408-200703

main67673-68010iANE11..TH200312-200512

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0M010iANE1#..TAIW200408-200703

main67674-68010iANE11,ZNE10..RHD200312-200512

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-0M010iANE1#..TAIW200408-200703

main67675-68010iANE11..TH200312-200512

sub67675-68020

main67675-68020iANE11,ZNE10..RHD200512

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-0M010iANE1#..TAIW200408-200703

main67676-68010iANE11..TH200312-200512

sub67676-68020

main67676-68020iANE11,ZNE10..RHD200512

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-68010iANE11200312-200401

main68173-68020iANE11..TH200401-200703

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-68010iANE11200312-200401

main68174-68020iANE11..TH200401-200703

7401

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

8537312020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-12020

9016460021

main90164-60021

9046707173C0

main90467-07173C0

9046805060

main90468-05060

9046805106

main90468-05106

17 parts on this diagram · 3 diagrams in section
