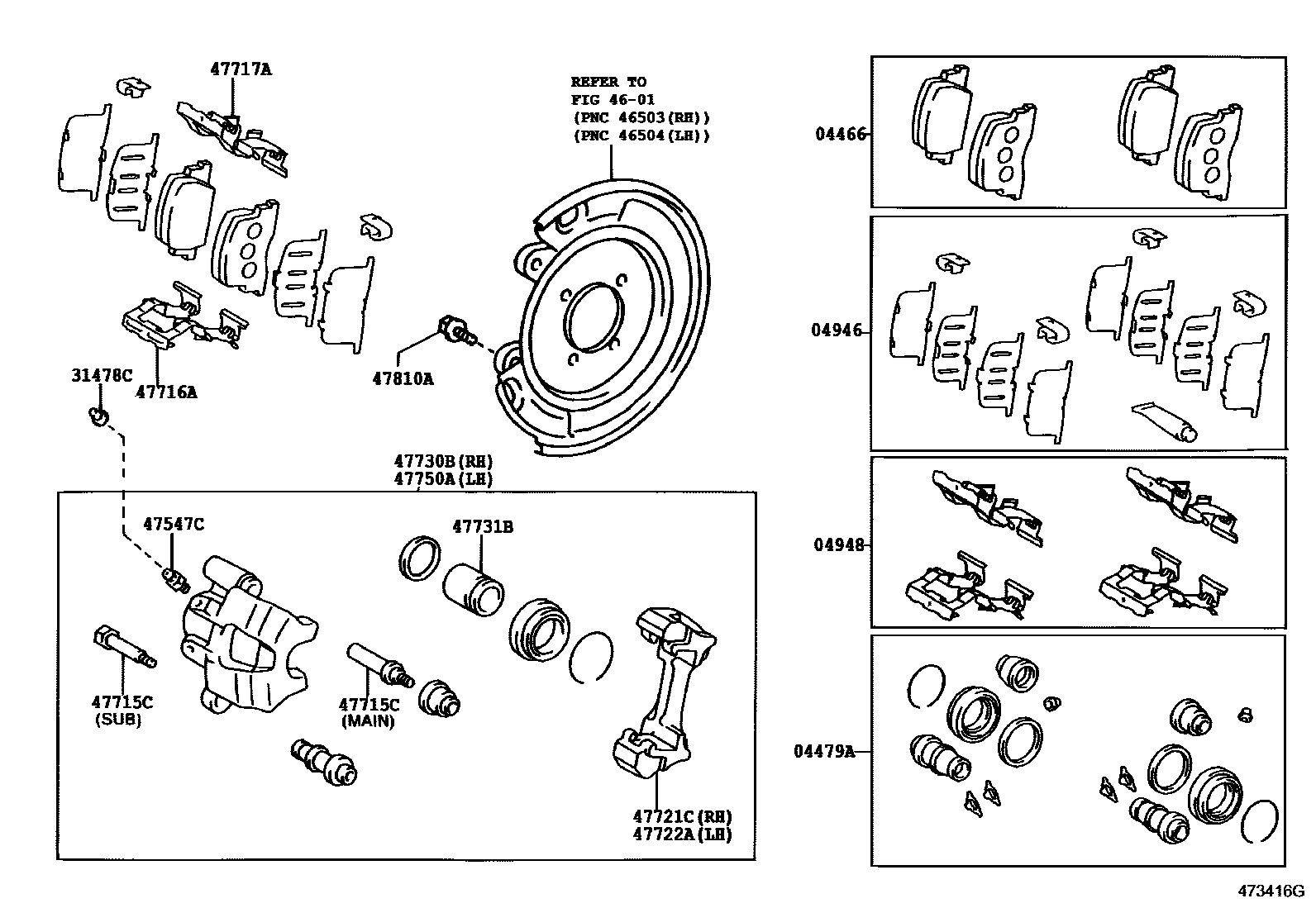

Toyota WISH — REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-21010iANE11..TH200312-200910

MARK SUMITOMO PS549

main04466-48020iANE12200408-200909

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33270iANE12200710-200907

main04479-48030iANE1#..TAIW200312-200906

main04479-68060iANE11200906

sub04479-68061

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33020iANE11200312-200906

main04946-33050iANE11200906

main04946-48030iANE12200408-200907

main04946-48120iANE12200907

04948FITTING KIT, DISC BRAKE, REAR

main04948-48010iANE11..TH200312-200703

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-02010iANE1#..TAIW200409-200703

main31478-30010iANE11..TH200312-200512

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iANE11..TH200312-200703

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020iANE11..TH200312-200703

SUB

main47715-32030iANE11200312-200907

MAIN

main47715-32040iANE11200906

MAIN

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-48020iANE11..TH200312-200703

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-48020iANE11..TH200312-200703

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-21030iANE11..TH200312-200907

sub47715-32040

sub47721-21031

sub47722-21031

sub47771-32050

sub47875-30340

main47721-21031iANE11200906

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-21030iANE11..TH200312-200907

sub47715-32040

sub47721-21031

sub47722-21031

sub47771-32050

sub47875-30340

main47722-21031iANE11200906

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-21040iANE11..TH200312-200703

47731BPISTON, REAR DISC BRAKE

main47731-48020iANE11..TH200312-200703

sub47731-30120

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-21040iANE11..TH200312-200703

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iANE12;ANE11..06S200312-200910

16 parts on this diagram · 2 diagrams in section
