Toyota WISH — REAR COMBINATION LAMP

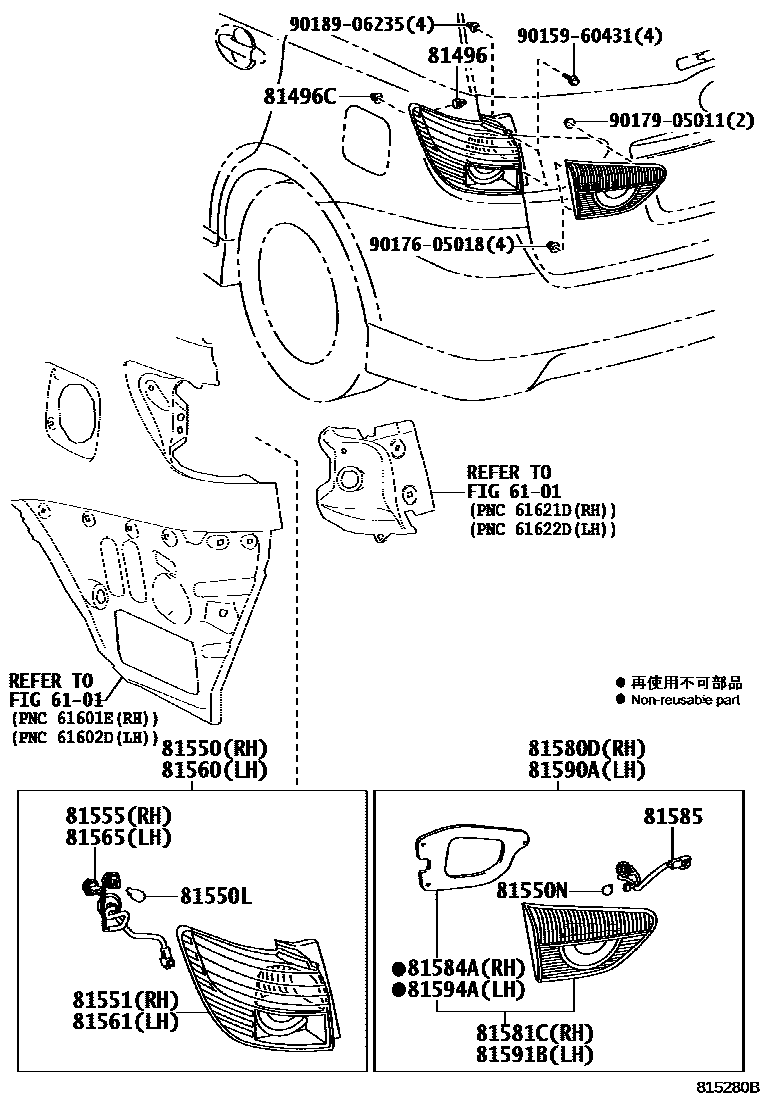

Parts diagram
6101SIDE MEMBER
→ Go to FIG 61-01
81496GUIDE, REAR COMBINATION LAMP
main81496-60010×2i200911-201212
81496CGUIDE, REAR COMBINATION LAMP, NO.2
main81496-52020×2i200911-201212
81550LAMP ASSY, REAR COMBINATION, RH
main81550-0M040i200911-201212
main81550-0M070i201212
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15021×2i200911-201212
81550NBULB, BACK UP LAMP
main90981-11059×2i200911-201212
81551LENS, REAR COMBINATION LAMP, RH
main81551-0M040i200911-201212
main81551-0M070i201212
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-0M040i200911-201212
81560LAMP ASSY, REAR COMBINATION, LH
main81560-0M040i200911-201212
main81560-0M050i201212
81561LENS, REAR COMBINATION LAMP, LH
main81561-0M040i200911-201212
main81561-0M050i201212
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-0M040i200911-201212
81580DLAMP ASSY, REAR, RH
main81580-0M010i200911-201212
main81580-0M020i201212
81581CLENS AND BODY, REAR LAMP, RH
main81581-0M010i200911-201212
main81581-0M020i201212
81584AGASKET, REAR LAMP RH
main81584-0M010i200911-201105
main81584-0M011i201105-201212
main81584-0M020i201212
81585SOCKET & WIRE, REAR LAMP
main81585-0M010×2i200911-201212
main81585-0M020×2i201212
81590ALAMP ASSY, REAR, LH
main81590-0M010i200911-201212
main81590-0M020i201212
81591BLENS AND BODY, REAR LAMP, LH
main81591-0M010i200911-201212
main81591-0M020i201212
81594AGASKET, REAR LAMP LH
main81594-0M010i200911-201105
main81594-0M011i201105-201212
main81594-0M020i201212
9015960431
main90159-60431
9017605018
main90176-05018
9017905011
main90179-05011
9018906235
main90189-06235

22 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota WISH

This section contains 23 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota WISH. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, GUIDE, REAR COMBINATION LAMP, NO.2, LAMP ASSY, REAR COMBINATION, RH, BULB, REAR TURN SIGNAL LAMP.
