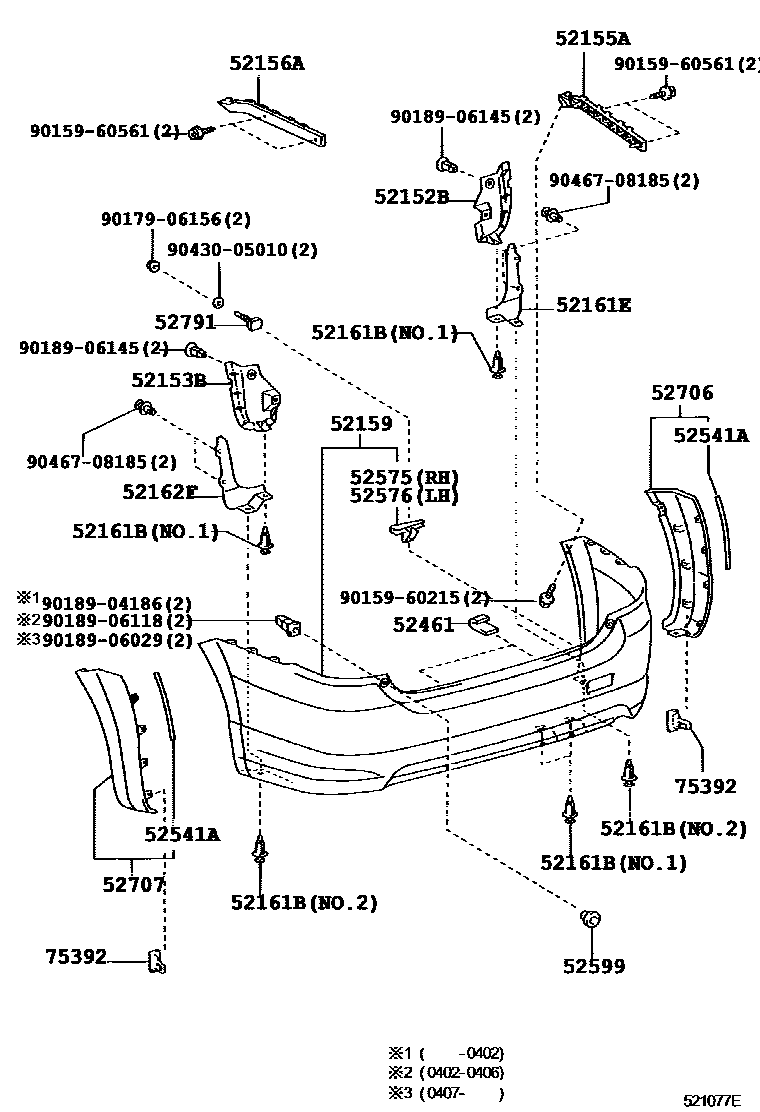

Toyota WISH — REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161EEXTENSION, REAR BUMPER SIDE, RH
52162FEXTENSION, REAR BUMPER SIDE, LH
52461PAD, REAR BUMPER, CENTER
52541APROTECTOR, REAR BUMPER
GRAY,1D0 ,1D4 ,4R0 ,586
BLACK,209 ,3N8 ,3P0 ,8N8
LT. GRAY,040 ,1D4
LT. GRAY,040 ,1D4 ,1F7
BLACK,1E9 ,3P2 ,4R0 ,8Q6
BLACK,1E9 ,209 ,4R0 ,8S6
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1D0
BLACK MC.,209
SUPER RED 5,3P0
RED MC.,3M8
RED M.M.,3N8
CHAMPAGNE ME.,586
DK.BLUE M.M.,8P4
DK.BLUE MC.,8L4
DK.BLUE MC.,8N8
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1D0
BLACK MC.,209
SUPER RED 5,3P0
RED MC.,3M8
RED M.M.,3N8
CHAMPAGNE ME.,586
DK.BLUE M.M.,8P4
DK.BLUE MC.,8L4
DK.BLUE MC.,8N8
52791BOLT, BUMPER MOULDING SET, NO.1
75392RETAINER, OUTSIDE MOULDING
9015960215
main90159-60215
9015960561
main90159-60561
9017906156
main90179-06156
9018904186
main90189-04186
9018906029
main90189-06029
9018906118
main90189-06118
9018906145
main90189-06145
9043005010
main90430-05010
9046708185
main90467-08185
26 parts on this diagram · 4 diagrams in section
