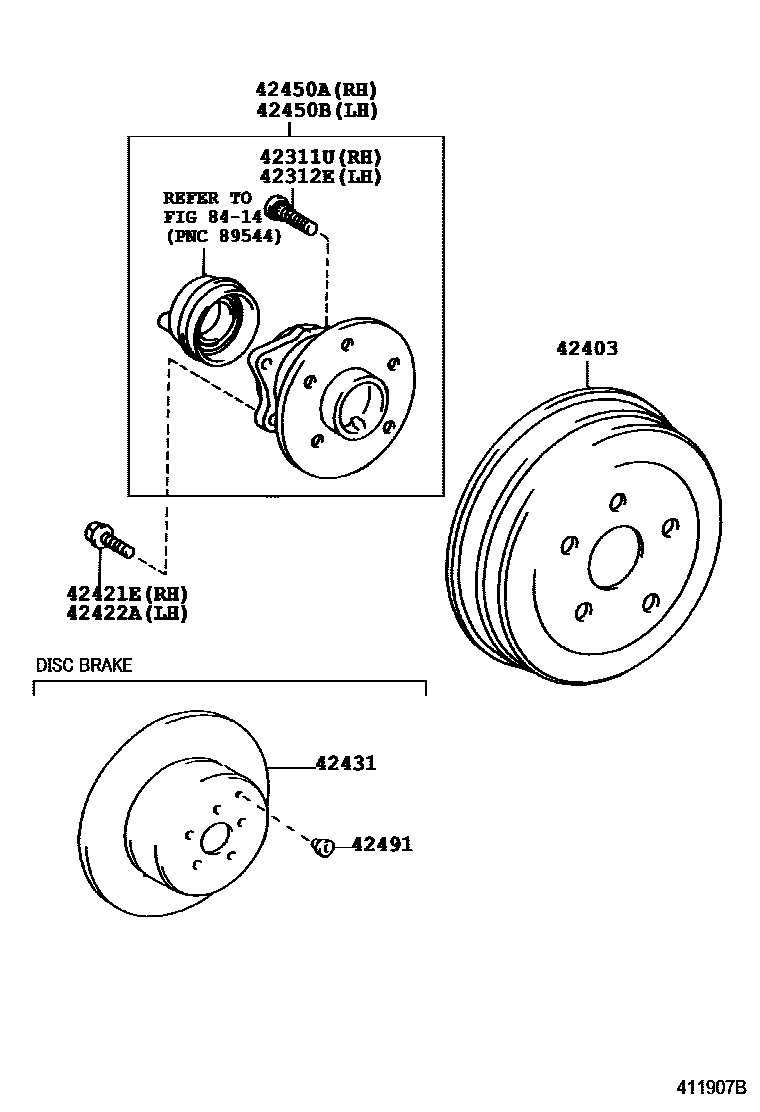

Toyota WISH — REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iANE12200312-200703

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iANE11..06S200312-200703

42403DRUM SUB-ASSY, REAR BRAKE

main42431-68010iZNE10200804-200903

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10449iANE11..TH200312-200703

main90105-10502iANE12200408-200703

main90105-10507iZNE10200804-200903

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10449iANE11200312-200703

main90105-10502iANE12200408-200703

main90105-10507iZNE10200804-200903

42431DISC, REAR

main42431-0M020iANE12200603-200909

(L)

main42431-21010iANE11200312-200402

sub42431-21011

main42431-21011iANE12200603-200909

(J)

main42431-21011iANE12200402-200910

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-63011iANE11..TH200312-200703

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-63011iANE11..TH200312-200703

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iANE12;ANE11..06S200312-200910

8414

10 parts on this diagram · 1 diagram in section
