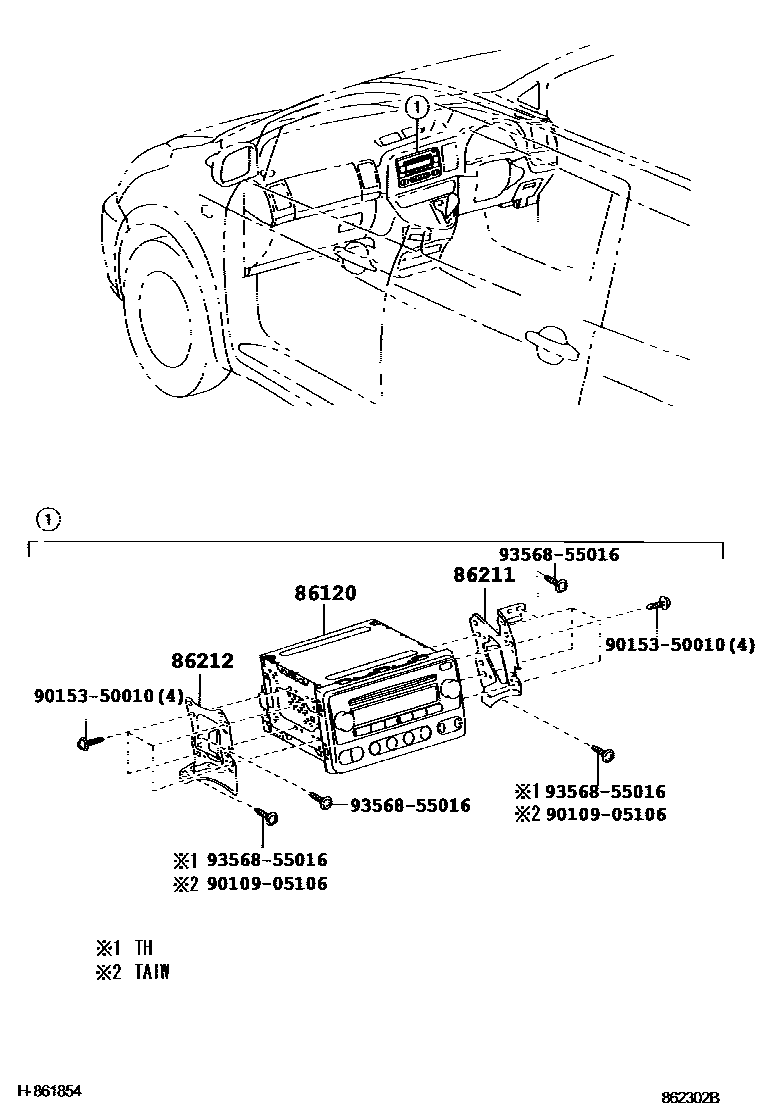

Toyota WISH — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0M010iANE12200408-200909

PIONEER,ID=P2804

main86120-0M020iANE1#..20E,ZAER200703-200909

PANASONIC,ID=52823

86211BRACKET, RADIO, NO.1

main86211-0M010iANE1#..TAIW200408-200909

main86211-68010iANE11..TH200312-200910

86212BRACKET, RADIO, NO.2

main86212-0M010iANE1#..TAIW200408-200909

main86212-68010iANE11..TH200312-200910

9010905106

main90109-05106

9015350010

main90153-50010

9356855016

main93568-55016

6 parts on this diagram · 2 diagrams in section
