Toyota WISH — PARTIAL ENGINE ASSEMBLY

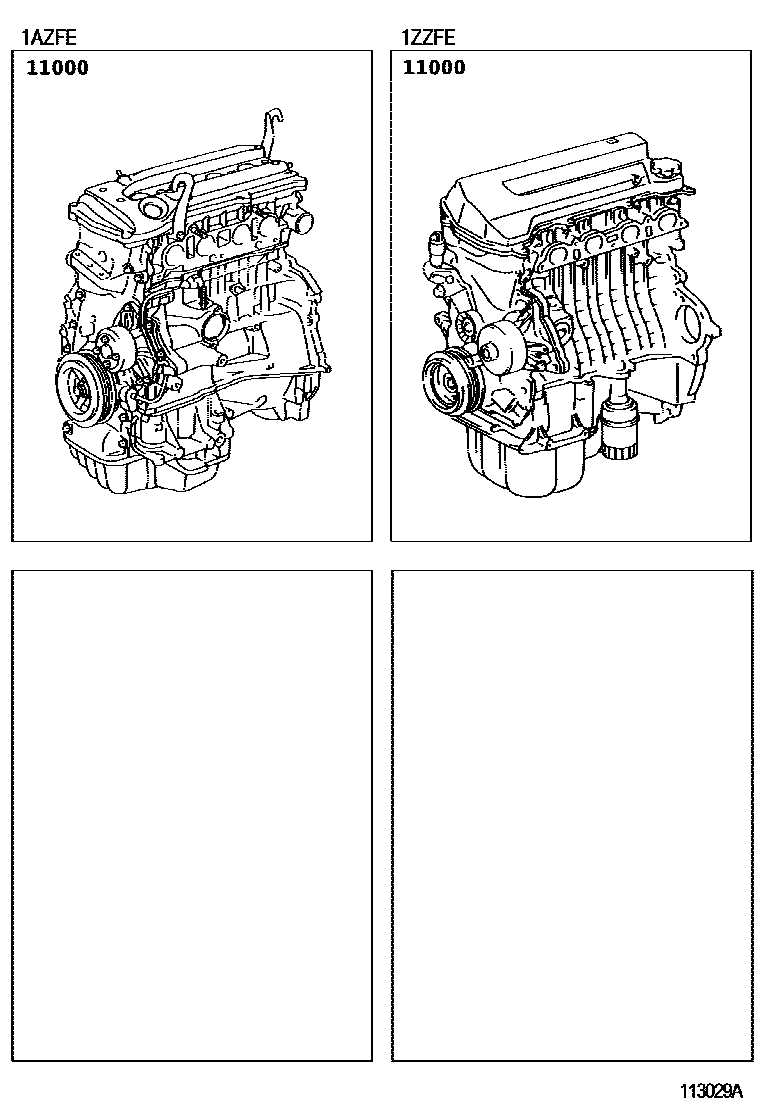

11000ENGINE ASSY, PARTIAL

main19000-0H070i1AZFE..ANE12;1AZFE..ANE11..06S200312-200703

sub19000-28494

main19000-22340i1ZZFE..ZNE10200804-200807

sub19000-22342

sub16258-28030

sub16268-22101

sub16268-22161

main19000-22342i1ZZFE..ZNE10200807-200903

sub19000-22343

sub90250-06003

main19000-28494i1AZFE..ANE1#200610

1 parts on this diagram · 1 diagram in section
