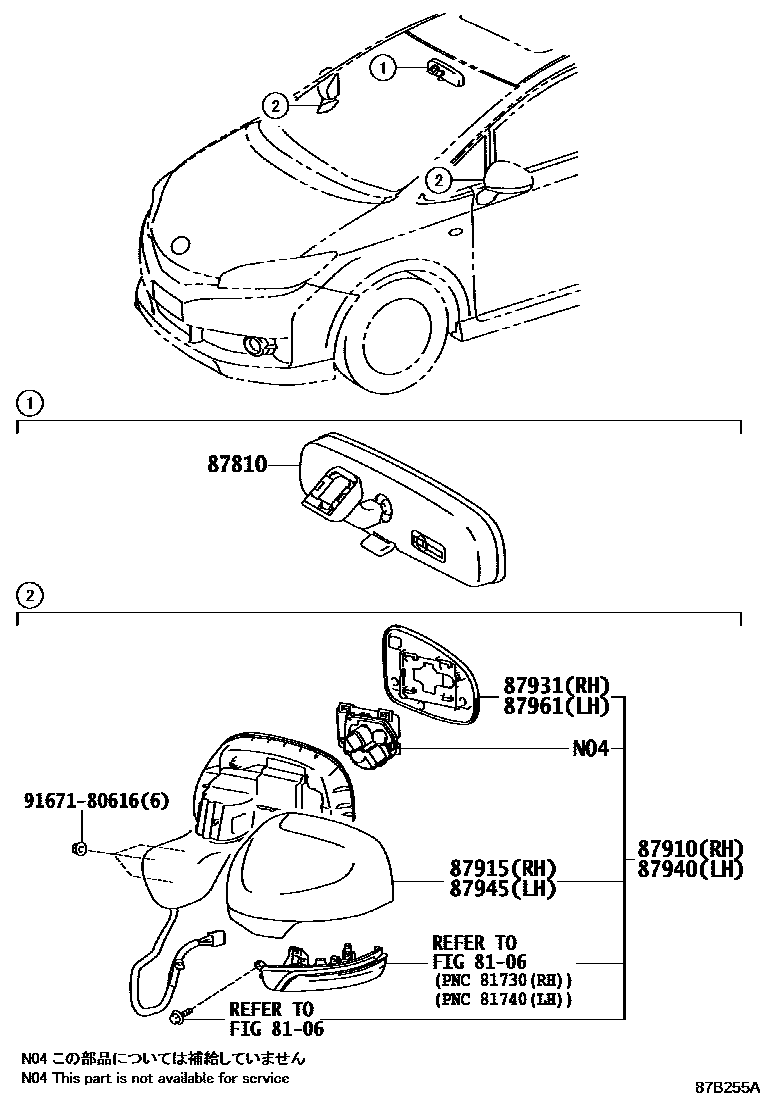

Toyota WISH — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06030i200911-201212

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0M903i200911-201212

PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-0M901i200911-201212

PAINT REQ.

87931OUTER MIRROR, RH

main87931-0M040i200911-201212

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0M903i200911-201212

PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-0M901i200911-201212

PAINT REQ.

87961MIRROR OUTER, LH

main87961-0M040i200911-201212

9167180616

main91671-80616

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota WISH

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota WISH. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
