Toyota WISH — METER

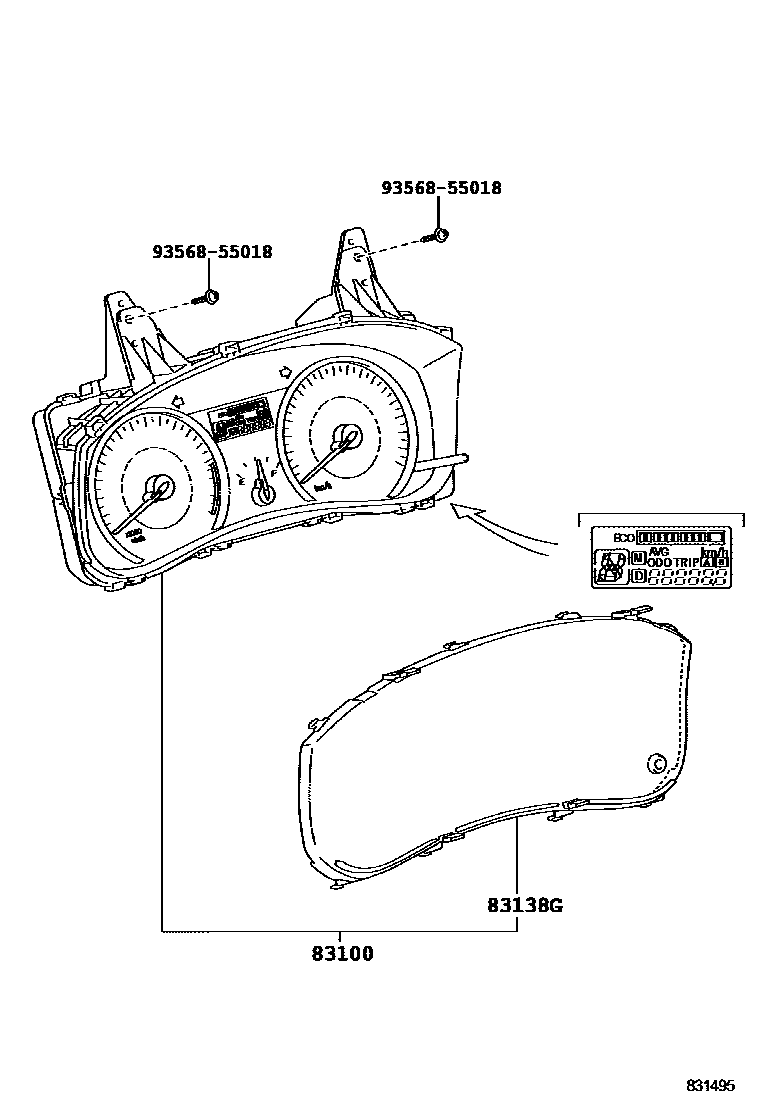

Parts diagram

83100METER ASSY, COMBINATION

main83800-0M100i200911-201212

main83800-0M110i200911-201212

main83800-0M120i201212-201411

main83800-0M121i201412

main83800-0M130i201212-201412

83138GGLASS, COMBINATION METER

main83852-0M100i200911-201212

main83852-0M110i200911-201212

9356855018

main93568-55018

3 parts on this diagram · 1 diagram in section
