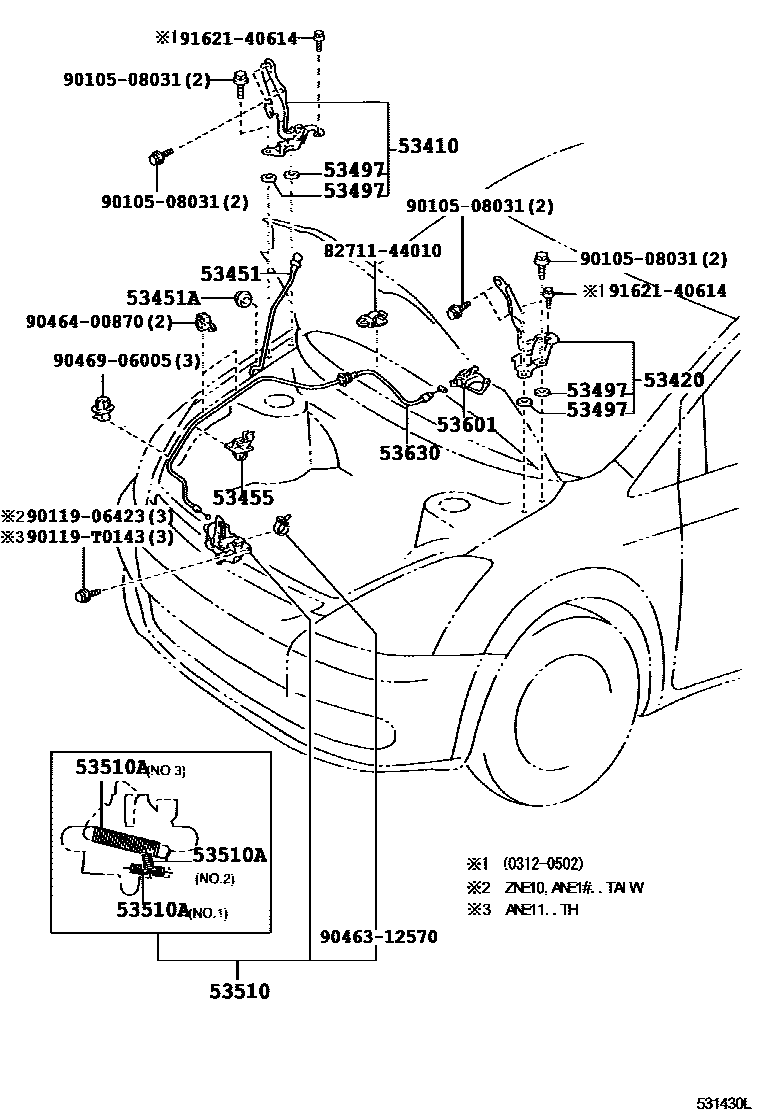

Toyota WISH — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0M010iANE1#..TAIW200610-200909

main53410-68010iANE12;ANE11..06S200312-200910

53420HINGE ASSY, HOOD, LH

main53420-0M010iANE1#..TAIW200610-200909

main53420-68010iANE11,ZNE10..RHD200312-200910

53451ROD, HOOD SUPPORT

main53440-0M010iANE1#..TAIW200408-200703

main53440-68010iANE11..TH200312-200512

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iANE11..TH200312-200703

53455CLAMP, HOOD SUPPORT ROD

main53455-68010iANE1#..TAIW200312-200703

53497PAD, HOOD HINGE, NO.1

main53497-20070iANE12;ANE11..06S200312-200610

T=2.0

main53497-42010iANE11..TH200312-200703

T=0.5

53510LOCK ASSY, HOOD

main53510-0M010iANE1#..TAIW200408-200807

sub53510-0M011

main53510-0M011iANE1#..TAIW200808

main53510-0M020iANE11..06S..TH200512

main53510-68010iANE11..TH200312-200512

main53510-68020iANE11..06S..TH200512

S PACKAGE

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iANE1#,ZNE10200312-200703

WD=0.9,CW=21,NO.1

main90506-12063iANE1#,ZNE10200312-200703

WD=1.2,CW=8.5,NO.2

main90506-18067iANE1#..TAIW200312-200703

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02030-B1iANE11..TH200312-200910

DK.GRAY,TRIM1#

main53601-52010-A0iANE12..20E200408-200909

IVORY,TRIM0#

sub53601-52010

main53601-52010-B3iANE1#,ZNE10..GEN,TAIW200408-200909

DK.GRAY,TRIM1#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0M010iANE1#..TAIW200408-200703

main53630-20620iANE11..TH200312-200512

8271144010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44010

9010508031

main90105-08031

9011906423

main90119-06423

90119T0143

main90119-T0143

9046312570

main90463-12570

9046400870

main90464-00870

9046906005

main90469-06005

9162140614

main91621-40614

18 parts on this diagram · 1 diagram in section
