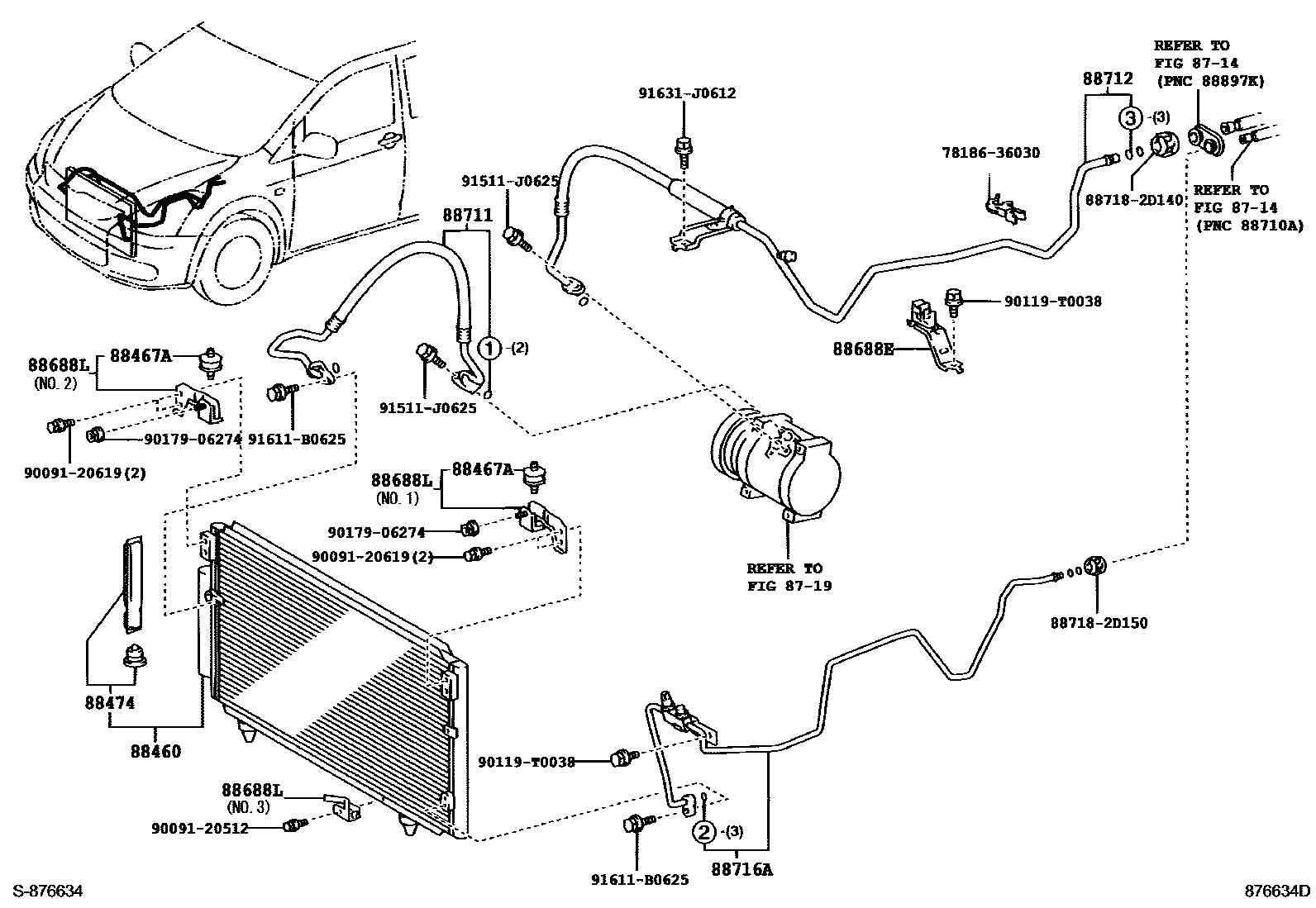

Toyota WISH — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-0M010iANE1#..TAIW200408-200703

main88460-21040iANE11..TH200312-200512

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-12030iANE11..TH200312-200512

88474DRYER, COOLER

main88474-17010iANE12;ANE11..06S200312-200910

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-0M020iANE1#..TAIW200408-200703

NO.1

main88688-0M030iANE1#..TAIW200408-200703

NO.2

main88688-2G020iANE11..TH200312-200512

main88688-68010iZNE10200804-200903

88688LBRACKET, CONDENSER PACKING

main88688-68030iANE11,ZNE10..RHD200312-200512

NO.1

main88688-68040iANE11..TH200312-200512

NO.2

main88688-68050iANE11..TH200312-200512

NO.3

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-0M010iANE1#..TAIW200408-200703

main88703-68010iZNE10200804-200903

main88703-68040iANE11..TH200312-200512

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-0M010iANE1#..TAIW200408-200703

main88704-68010iZNE10200804-200903

main88704-68050iANE11..TH200312-200512

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-0M020iANE1#..TAIW200408-200710

sub88710-0M021

main88710-0M021iANE1#..TAIW200710

main88710-68010iZNE10200804-200903

main88710-68030iANE11..TH200312-200512

7818636030SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-36030

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

9009120512

main90091-20512

9009120619

main90091-20619

90119T0038

main90119-T0038

9017906274

main90179-06274

91511J0625

main91511-J0625

91611B0625

main91611-B0625

91631J0612

main91631-J0612

20 parts on this diagram · 4 diagrams in section
