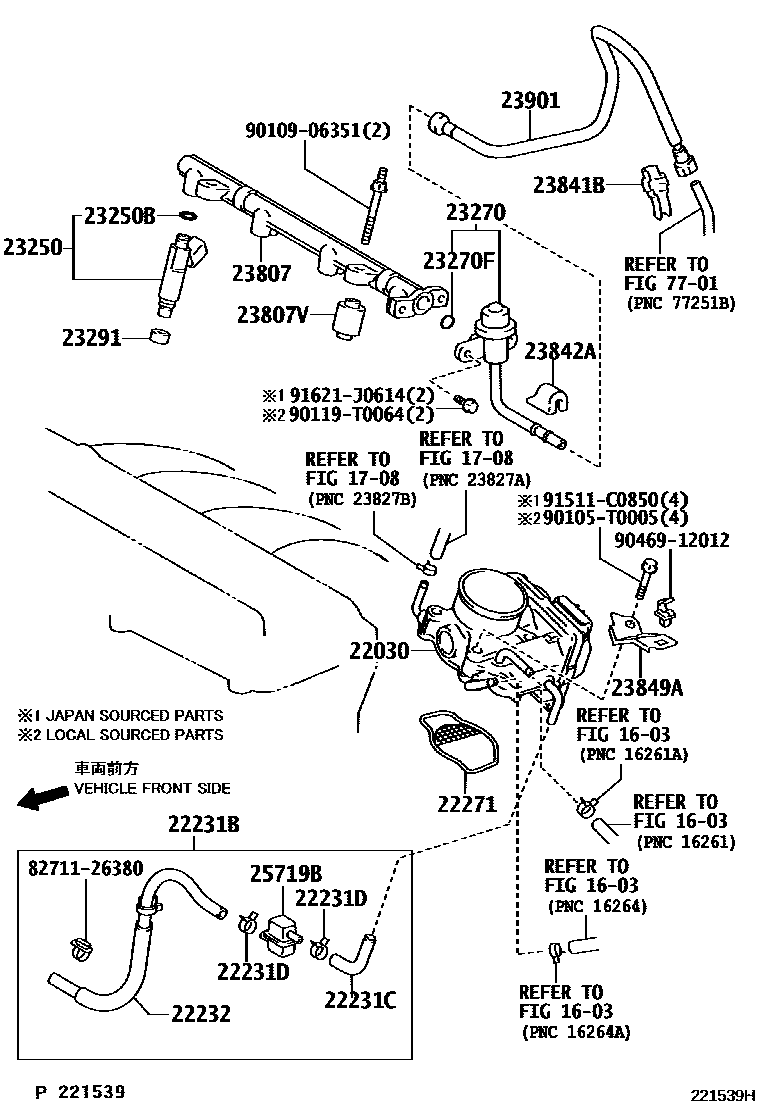

Toyota WISH — FUEL INJECTION SYSTEM
1603
1708
22231BHOSE, THROTTLE BODY
22231CHOSE, THROTTLE BODY, NO.1
22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22232HOSE, THROTTLE BODY, NO.2
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
25719BTANK, VACUUM SURGE
7701
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
90105T0005
main90105-T0005
9010906351
main90109-06351
90119T0064
main90119-T0064
9046912012
main90469-12012
91511C0850
main91511-C0850
91621J0614
main91621-J0614
28 parts on this diagram · 3 diagrams in section
