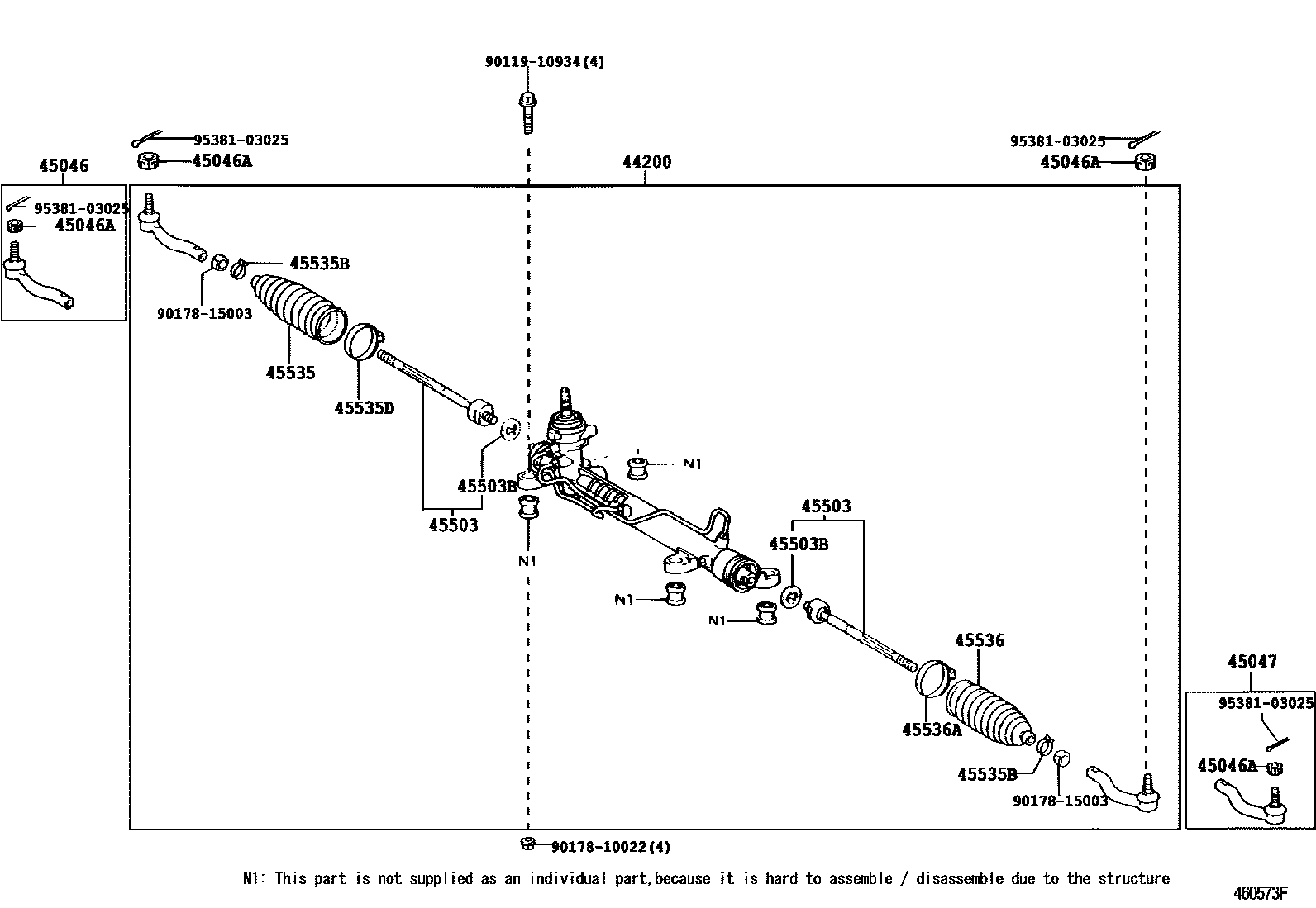

Toyota WISH — FRONT STEERING GEAR & LINK

0001 1RHD 0002 1LHD 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-68010iANE11..TH200312-200910

main44200-68030iANE12200408-200909

main44200-68040iANE11..TAIW200511-200909

45046END SUB-ASSY, TIE ROD, RH

main45046-19265iZNE10200804-200903

main45046-49115iANE12200408-200703

main45047-49025iANE11200312-200703

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iANE11..TH200312-200810

main90171-T0004iANE11..TH200810

45047END SUB-ASSY, TIE ROD, LH

main45046-49095iANE11200312-200703

main45047-19115iZNE10200804-200903

main45047-49045iANE12200408-200703

45503END SUB-ASSY, STEERING RACK

main45503-12130iZNE10200804-200903

sub45503-12131

main45503-19255iANE12200408-200703

sub45503-19256

main45503-29825iANE11..TH200312-200703

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009iANE11..TH200312-200703

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-13010iANE1#200312-200703

main45535-52060iZNE10200804-200903

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iANE11..TH200312-200703

main90467-19021iZNE10200804-200903

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iANE1#200312-200703

main90460-58008iZNE10200804-200903

45536BOOT, STEERING RACK, NO.2

main45535-13010iANE11..TH200312-200703

main45535-52060iZNE10200804-200903

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iANE11..TH200312-200703

main90460-58008iZNE10200804-200903

9011910934

main90119-10934

9017810022

main90178-10022

9017815003

main90178-15003

9538103025

main95381-03025

15 parts on this diagram · 4 diagrams in section
