Toyota WISH — FRONT FENDER APRON & DASH PANEL

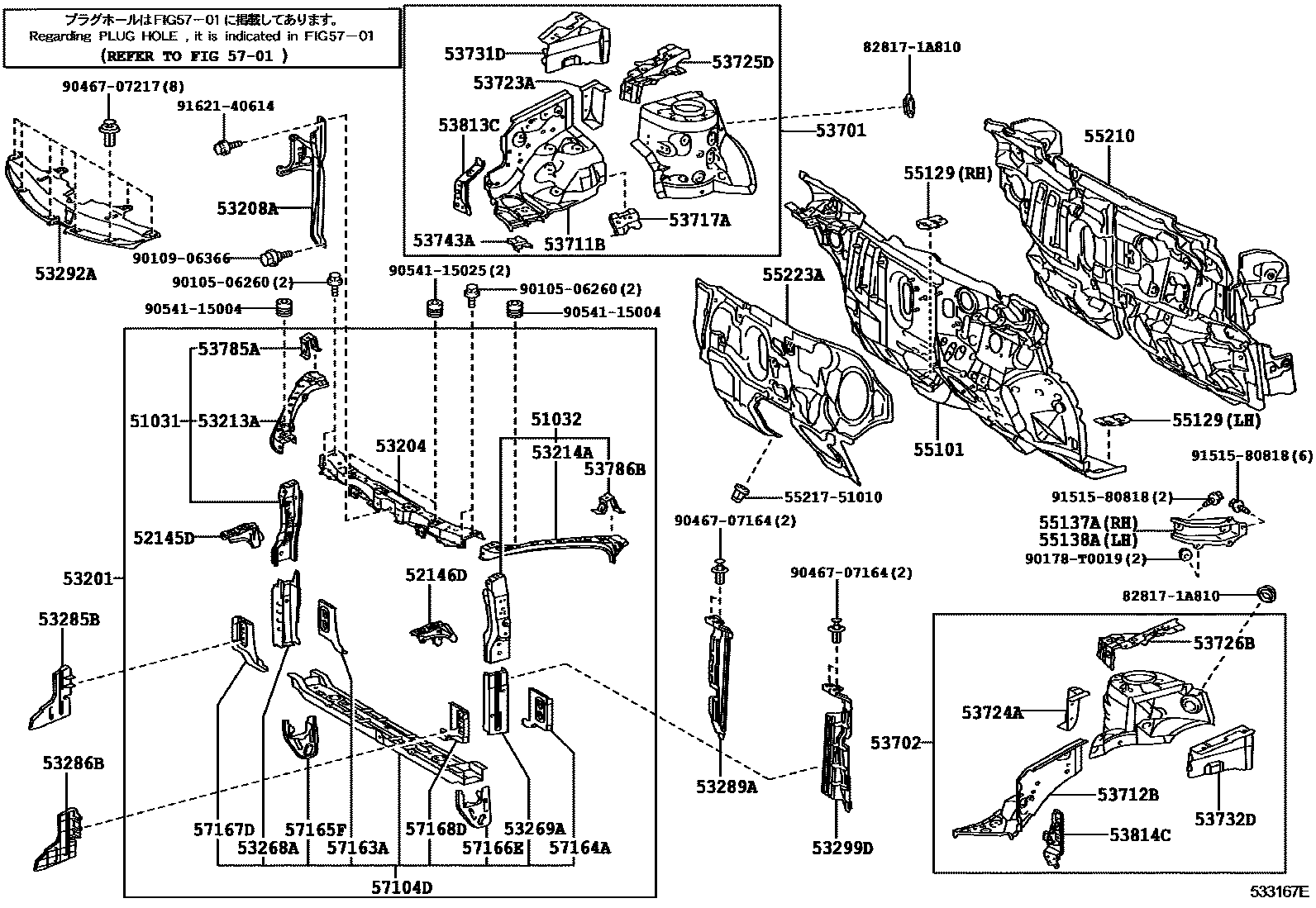

Parts diagram
51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
main51031-0M020i201212
51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
main51032-0M020i200911-201212
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
main52145-0M010i200911-201212
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
main52146-0M010i200911-201212
53201SUPPORT SUB-ASSY, RADIATOR
main53201-0M020i200911-201212
53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER
main53209-0M010i200911-201212
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-0M030i200911-201212
53213ASUPPORT, RADIATOR, UPPER RH
main53213-0M020i200911-201212
53214ASUPPORT, RADIATOR, UPPER LH
main53214-0M020i200911-201212
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
main53268-20110i200911-201212
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
main53269-63010i200911-201212
53285BSEAL, RADIATOR SIDE AIR, NO.1
main53285-0M030i200911-201212
main53285-0M040i201212
53286BSEAL, RADIATOR SIDE AIR, NO.2
main53285-0M030i200911-201212
main53285-0M040i201212
53289ACOVER, RADIATOR SUPPORT OPENING
main53289-0M020i200911-201212
53292ASEAL, RADIATOR SUPPORT, UPPER
main53292-0M020i200911-201212
53299DSEAL, RADIATOR SIDE DEFLECTOR, LH
main53299-0M010i200911-201212
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-0M020i200911-201212
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-0M020i200911-201212
53711BAPRON, FRONT FENDER, FRONT RH
main53711-02100i200911-201212
53712BAPRON, FRONT FENDER, FRONT LH
main53712-02110i200911-201212
53717APLATE, FENDER APRON
main53717-12060i200911-201212
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
main53723-12080i200911-201212
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
main53724-12070i200911-201212
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
main53725-0M010i201212
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
main53726-0M010i200911-201212
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-12160i200911-201212
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-12140i200911-201212
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-12050i200911-201212
53785AGUSSET, FRONT FENDER APRON, UPPER RH
main53785-0M010i200911-201212
53786BGUSSET, FRONT FENDER APRON, UPPER LH
main53786-0M010i201212
53813CEXTENSION, FRONT FENDER, RH
main53813-0M010i201212
53814CEXTENSION, FRONT FENDER, LH
main53814-0M010i200911-201212
55101PANEL SUB-ASSY, DASH
main55101-0M030i201212-201606
55129COVER, DASH PANEL HOLE
main55129-32030i200911-201212
RH
main55139-32010i200911-201212
LH
55137ABRACE, DASH TO FRAME, RH
main55137-02070i201212
55138ABRACE, DASH TO FRAME, LH
main55138-02060i200911-201212
55210INSULATOR ASSY, DASH PANEL
main55210-0M020i200911-201212
main55210-0M021i201408
55223AINSULATOR, DASH PANEL, OUTER
main55223-0M020i200911-201212
5701
57104DMEMBER SUB-ASSY, FRONT CROSS
main57104-0M020i200911-201001
main57104-0M021i201002-201212
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
main57163-32050i200911-201212
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
main57164-32050i200911-201212
57165FREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH
main57165-68010i200911-201212
57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH
main57166-68010i200911-201212
57167DREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH
main57167-0M011i200911-201212
57168DREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH
main57168-0M011i200911-201212
5521751010STRIP, DASH PANEL SILENCER FINISH
main55217-51010
828171A810PROTECTOR, WIRING HARNESS, NO.1
main82817-1A810
9010506260
main90105-06260
9010906366
main90109-06366
90178T0019
main90178-T0019
9046707164
main90467-07164
9046707217
main90467-07217
9054115004
main90541-15004
9054115025
main90541-15025
9151580818
main91515-80818
9162140614
main91621-40614

57 parts on this diagram · 1 diagram in section
