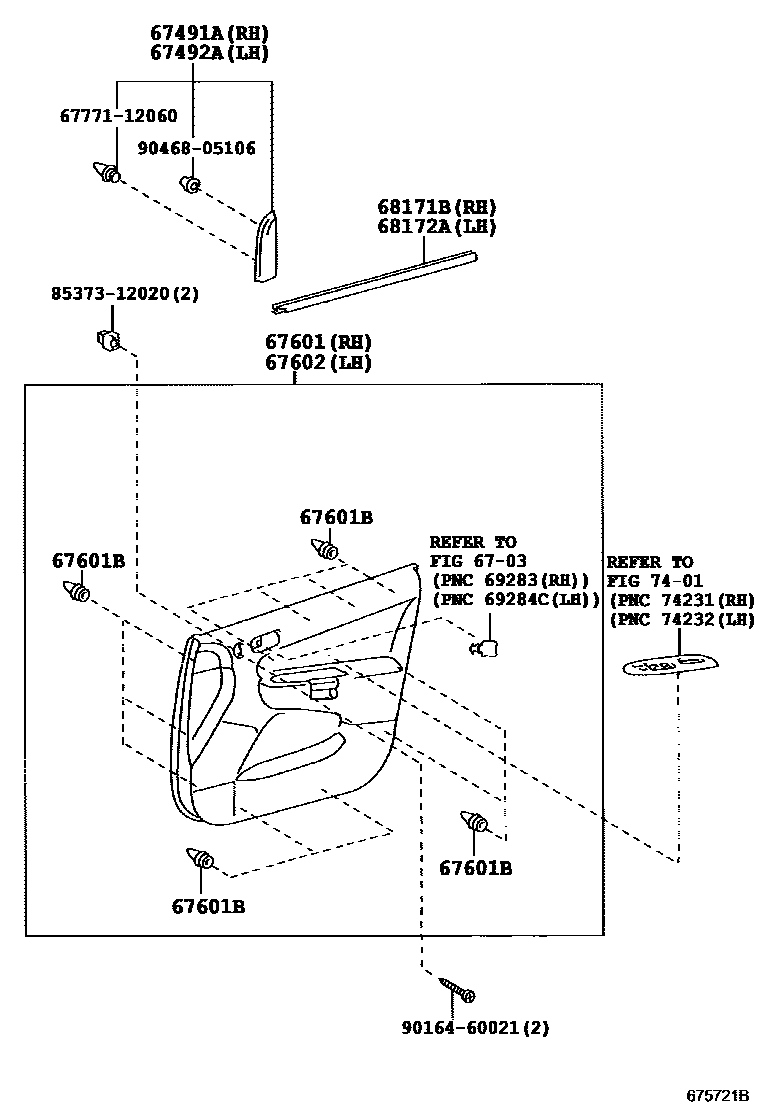

Toyota WISH — FRONT DOOR PANEL & GLASS

Parts diagram

6703

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-0M010i200408-200703

main67491-68010i200312-200512

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-0M010i200408-200703

main67492-68010i200312-200512

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-0M010-B0i200312-200910

DK.GRAY,TRIM1#

main67610-0M020-A0i200408-200703

IVORY,TRIM0#

main67610-0M020-B0i200408-200703

DK.GRAY,TRIM1#

main67610-0M050-B0i200512-200910

S PACKAGE,DK.GRAY,TRIM1#

main67610-0M050-B0i200512-200910

DK.GRAY,TRIM1#

main67610-0M060-A0i200703-200909

IVORY,TRIM0#

main67610-0M060-B0i200703-200909

DARK GRAY,TRIM1#

main67610-68010-B3i200804-200903

MEDIUM GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09203i200410-200703

NO.2

main90467-09206i200312-200512

main90467-09206i200410-200703

NO.1

main90467-09206i200408-200410

NO.1 & NO.2

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-0M010-B0i200312-200910

DK.GRAY,TRIM1#

main67620-0M020-A0i200408-200703

IVORY,TRIM0#

main67620-0M020-B0i200408-200703

DK.GRAY,TRIM1#

main67620-0M050-B0i200512-200910

DK.GRAY,TRIM1#

main67620-0M050-B0i200512-200910

S PACKAGE,DK.GRAY,TRIM1#

main67620-0M060-A0i200703-200909

IVORY,TRIM0#

main67620-0M060-B0i200703-200909

DARK GRAY,TRIM1#

main67620-68010-B3i200804-200903

MEDIUM GRAY,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-68010i200312-200401

main68171-68020i200401-200703

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-68010i200312-200401

main68172-68020i200401-200703

7401

6777112060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12060

8537312020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-12020

9016460021

main90164-60021

9046805106

main90468-05106

13 parts on this diagram · 4 diagrams in section
