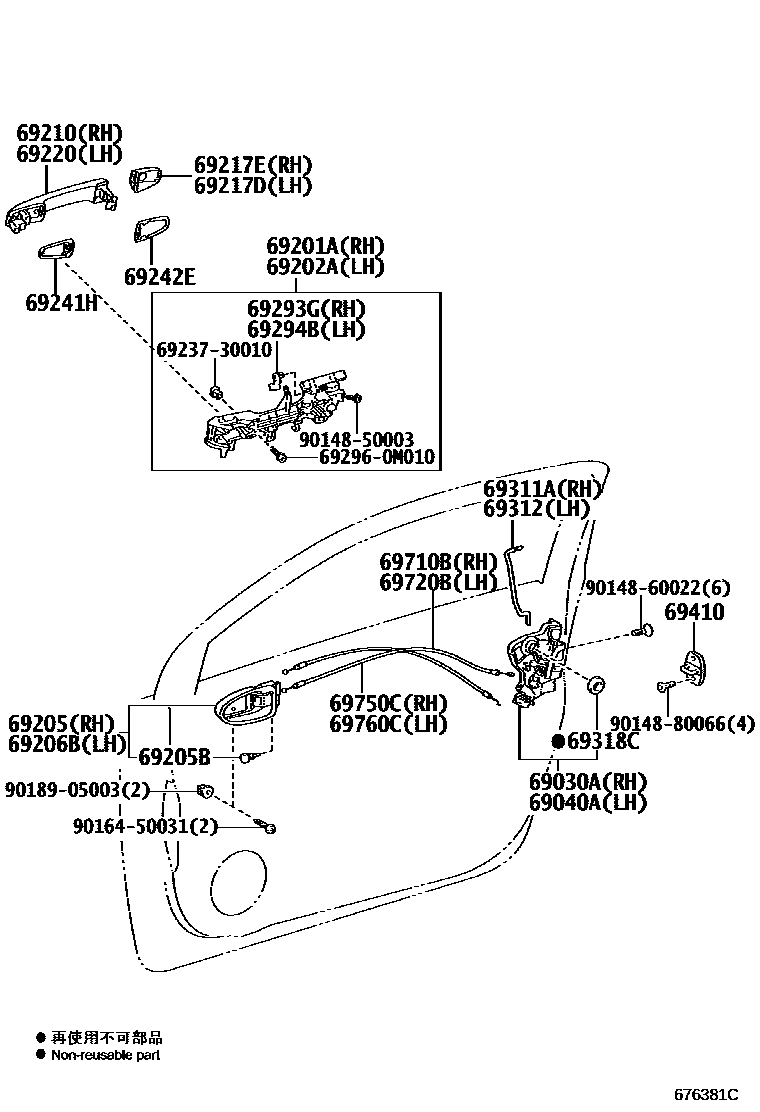

Toyota WISH — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
LESS COLOR
LESS COLOR
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
LESS COLOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
ORANGE ME.,4R8
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692960M010SCREW, DOOR INSIDE HANDLE
main69296-0M010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
30 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota WISH
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota WISH. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
