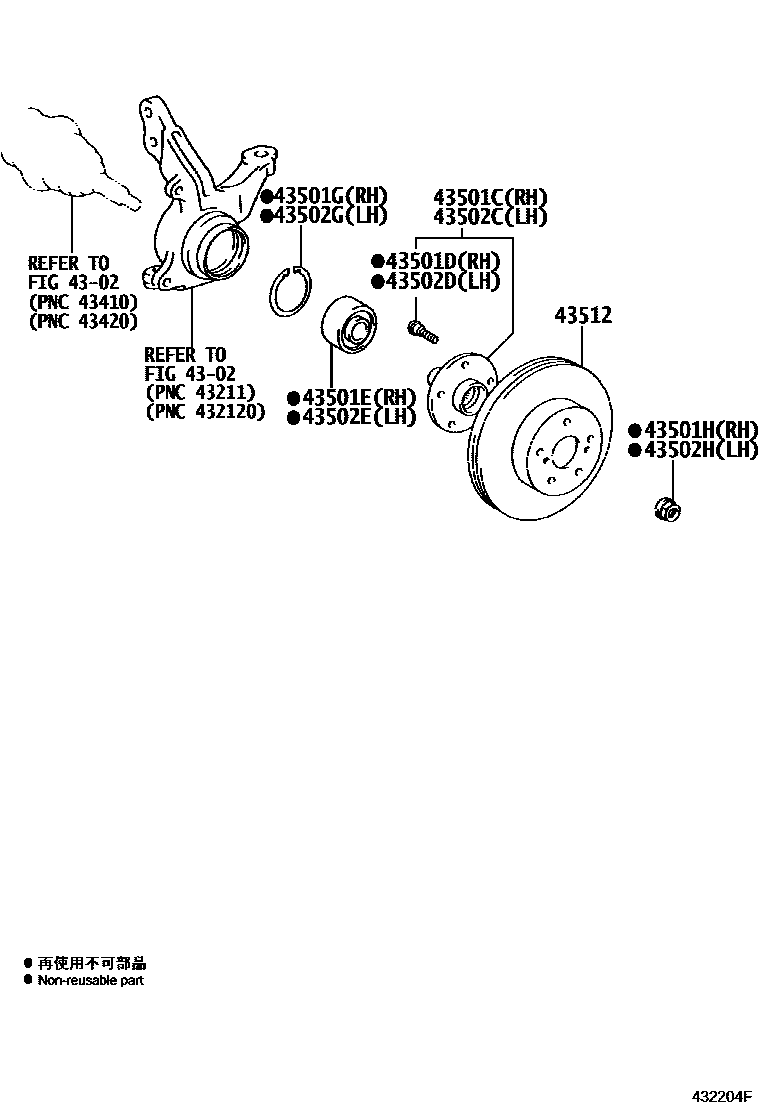

Toyota WISH — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-21010i200911-201212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200911-201212

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-T0018i200911-201212

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200911-201212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200911-201212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-21010i200911-201212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200911-201212

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-T0018i200911-201212

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200911-201212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200911-201212

43512DISC, FRONT

main43512-0M020×2i200911-201212

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota WISH

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota WISH. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
